The complete nRF52 Mac development tutorial

The complete tutorial for nRF52 Mac development and debugging

Today’s tutorial focuses on setting up the environment for nRF52 Mac development and debugging for Bluetooth Low Energy applications. Specifically, I will be using the new Nordic nRF52840 Preview Development Kit board that supports the enhanced features of Bluetooth 5 (including longer range, bigger advertisements and increased speed).

A few notes about the setup/environment as well as the goals of this tutorial:

  • We’ll be running on macOS Sierra v10.12.4 (on a late-2016 15″ MacBook Pro)
  • We will be using the NetBeans IDE for this tutorial (really any IDE that supports gdb and gdbserver connection should work with additional customizations)
  • We’ll be using the nRF52840 Preview Development Kit
  • We’ll be able to live-debug (runtime debug) the application within the IDE and stepping through source code
  • The power of running within a macOS or Linux environment vs. Windows is the capabilities for automation and automated testing
  • This will be a first in a series of blog posts focused on deep technical implementations of BLE applications on different development kits
  • Nordic Semiconductor modules have great gcc support which makes it relatively easy to get started on a macOS or Linux environment
  • This tutorial is intended to serve as a complete tutorial that guides you step by step on setting up your environment from scratch (this should be a one-time thing)
  • I ran through all these steps with Xcode already installed on my Mac, so I recommend installing it first to be able to run through the tutorial successfully.

On macOS, unless you’re running within a Virtual Machine, you’re stuck with following tutorials that help you set up with Eclipse (or you can shell out some serious money for IAR or Keil). I’m a big fan of open-source tools such as GCC and believe they have some major advantages over proprietary and IDE-based tools (automation, consistency across multiple platforms…etc).

I’m personally not a big fan of Eclipse (although I realize it’s the most popular open-source IDE for  embedded developers) – I just find it a bit slow and too clunky whereas NetBeans is more simplified and provides a better user experience. I’ve been using NetBeans for embedded (both Linux and microcontroller level) development for over 10 years now. (If you’re not aware, Microchip’s most recent IDE called MPLAB X is actually based on NetBeans. Other vendors have done the same but with Eclipse.)

Alright, enough with all this Eclipse vs. NetBeans dilemma. Let’s get technical.

The nRF52 series

The nRF series are one of the most popular Bluetooth low energy chips, and are used in many BLE applications. Some of the reasons why they’ve been a top choice for many are:

  • The new nRF52 chips support Bluetooth 5.
  • Support for multiple development environments and toolchains including GCC, which gives developers more freedom and flexibility over what other vendors provide.
  • The excellent support you get from Nordic’s Developer Zone.
  • Support by new open source IoT and BLE solutions (nRF5x series is supported by both the Zephyr Project and MyNewt which are gaining popularity because of their openness and strong capabilities)

From Nordic’s Infocenter:

The nRF52 Series of system on chip (SoC) devices embed a powerful yet low-power ARM® Cortex®-M4 processor with our industry leading 2.4 GHz RF transceivers. In combination with the very flexible orthogonal power management system and a programmable peripheral interconnect (PPI) event system, the nRF52 series enables you to make ultra-low power wireless solutions.

The nRF52 Series offers pin-compatible device options for Bluetooth® low energy, proprietary 2.4 GHz, and Apache®solutions giving you the freedom to develop your wireless system using the technology that suits your application the best. Our unique memory and hardware resource protection system allows you to develop applications on devices with embedded protocol stacks running on the same processor without any need to link in the stack or strenuous testing to avoid application and stack from interfering with each other.

The nRF52 runs a proprietary BLE stack provided by Nordic Semiconductor called the SoftDevice.

From Nordic’s Infocenter:

A SoftDevice is a wireless protocol stack library for building System on Chip (SoC) solutions.

SoftDevices are precompiled into a binary image and functionally verified according to the wireless protocol specification, so that all you have to think about is creating the application. The unique hardware and software framework provide run-time memory protection, thread safety, and deterministic real-time behavior. The Application Programming Interface (API) is declared in header files for the C programming language. These characteristics make the interface similar to a hardware driver abstraction where device services are provided to the application, in this case, a complete wireless protocol.

Hardware Requirements

To follow this tutorial you will need the following:

  • Nordic Semiconductor nRF52 Preview Development Kit
  • A micro-USB to USB cable (for connecting the development kit to your PC)
  • A macOS computer (MacBook Pro, MacBook, MacBook Air…etc)

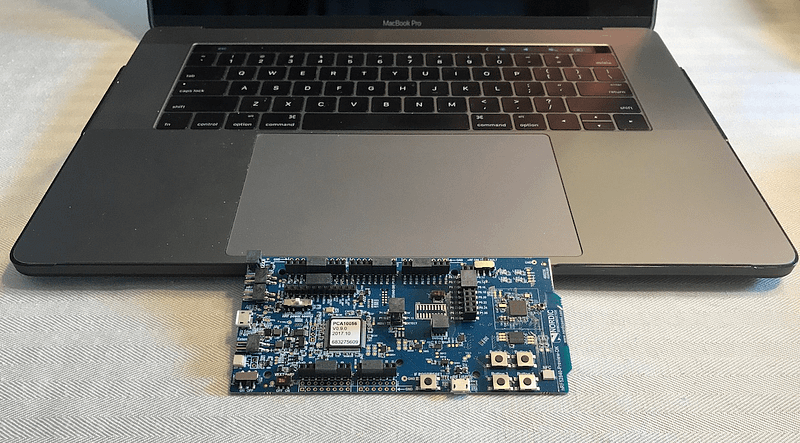

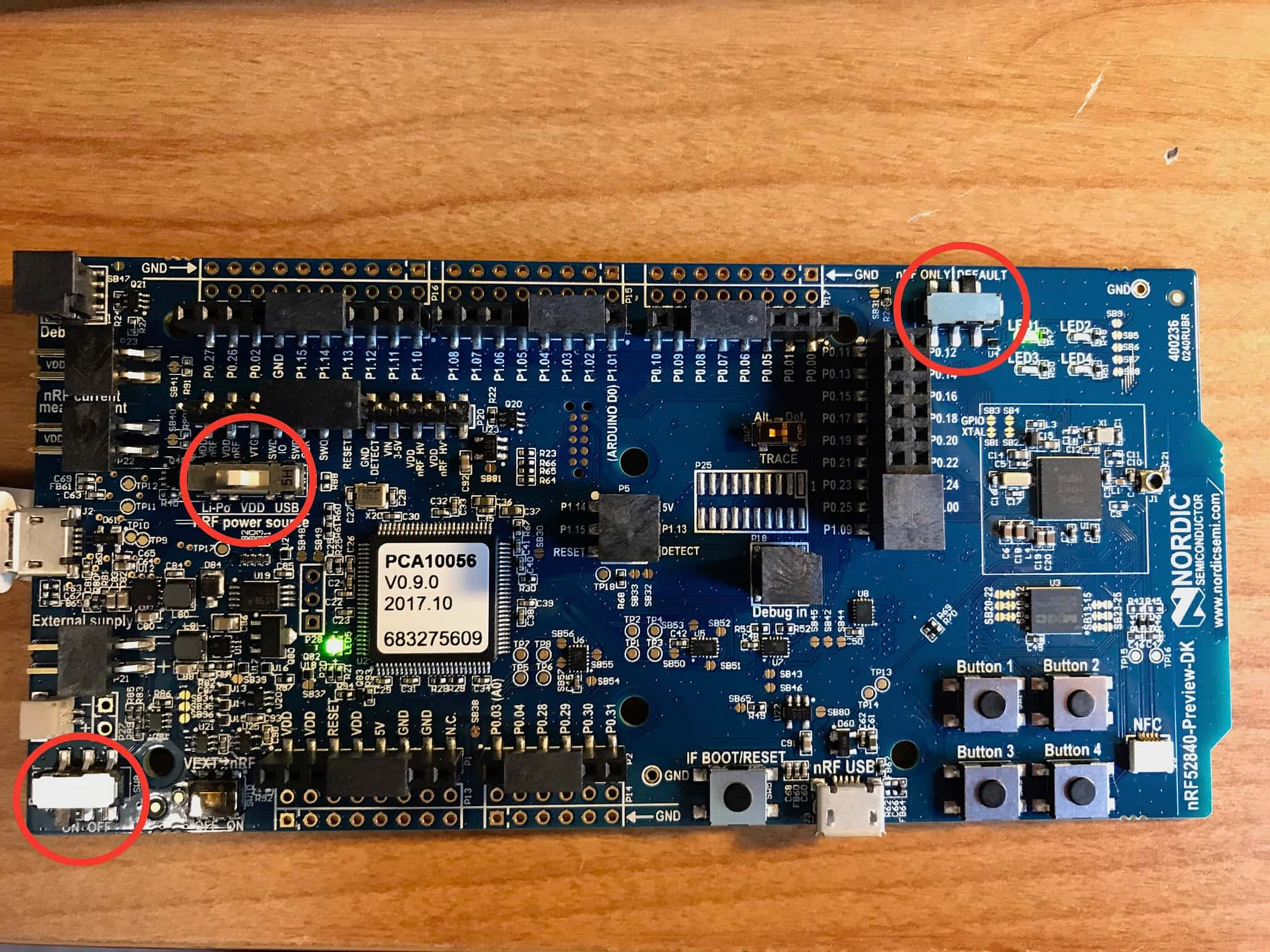

Make sure your dev kit is configured as follows:

nRF Power Source is set to VDD (middle-position)
Top-right switch is set to DEFAULT
Bottom-left switch is set to ON


Download NetBeans

NetBeans is an open source IDE that’s targeted towards Java development but supports other development environments including C & C++. Since it is JVM-based it can run on all the major platforms including macOS, Linux and Windows. You can download the latest version of NetBeans here. Make sure you download the C/C++ (or “All” version which includes all supported technologies). I am running with version 8.2 (latest as of May 2017). After the download is complete go ahead and install the application.

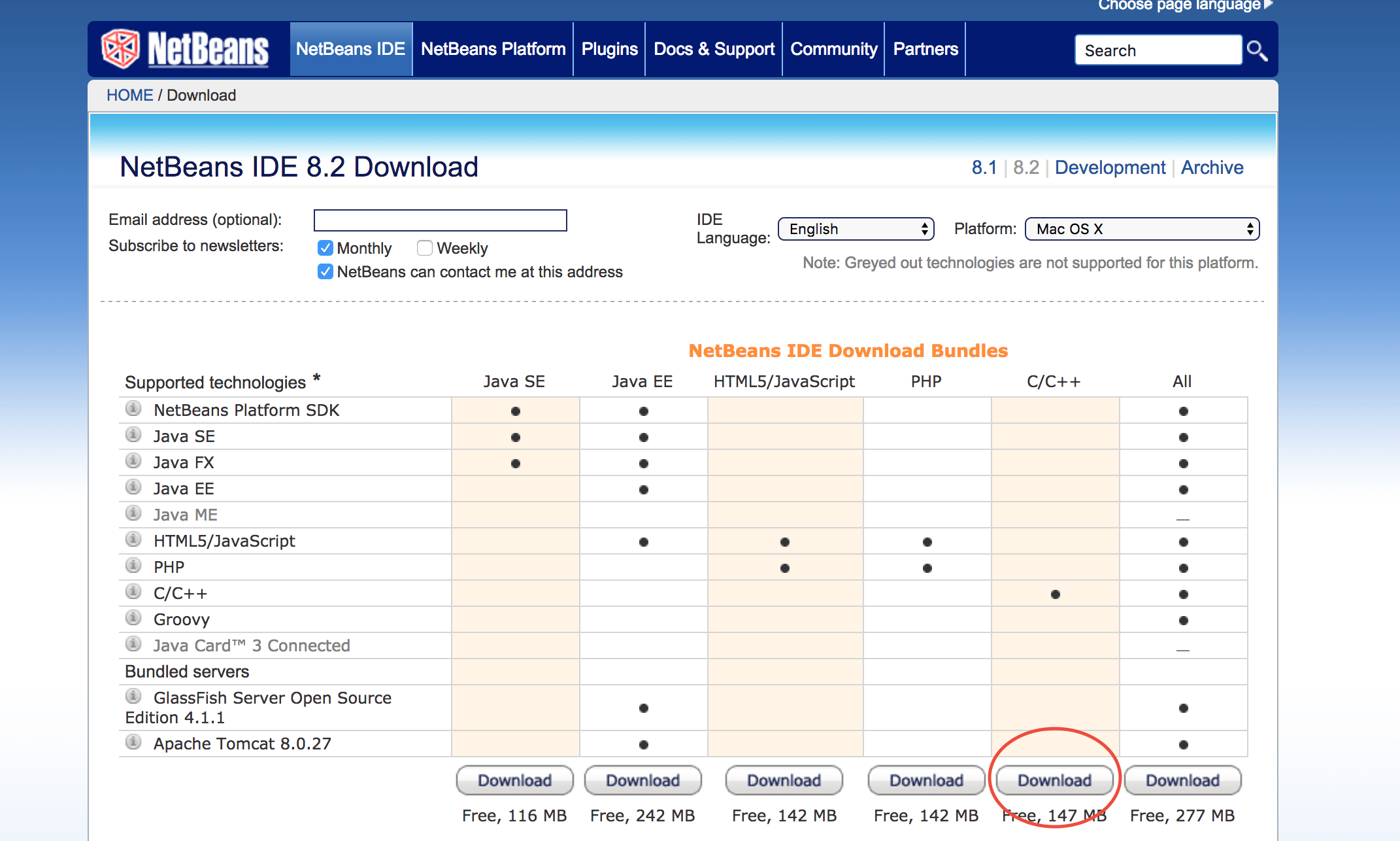

NetBeans Download C/C++ Option

Download nRF tools and SDK

There are a couple of tools that you’ll need to download from Nordic Semi’s site to get started with the nRF52840 development kit. All can be found under the Downloads section HERE. Download each of these to your local machine (preferably you local Downloads folder).

  1. nRF5x SDK: nRF5-SDK-zip. (I’m running with version 13.0.0).
  2. nRF5x Command Line Tools: nRF5x-Command-Line-Tools-OSX (I’m running with version 9.4.0)

Download the ARM GCC toolchain

Download the latest version from this link. I’m running with version 6-2017-q1-update. Look for the Mac OS X 64-bit link.

Download and install the SEGGER tools

Download the tool here. Look for the J-Link Software and Documentation pack for MacOSX download link under J-Link Software and Documentation Pack. After downloading go ahead and install the software.

Setting up the downloaded tools

To make things easy we’ll put all the tools in one folder.

Start by running a terminal session (⌘ + Space bar -> type “terminal” -> return).

mkdir -p ~/opt
cd ~/opt
tar xjvf ~/Downloads/gcc-arm-none-eabi-6-2017-q1-update-mac.tar.bz2
mkdir -p nRF5_SDK_13.0.0
cd nRF5_SDK_13.0.0
tar xjvf ~/Downloads/
cd ~/opt
mkdir -p nRF5x-Command-Line-Tools_9_4_0_OSX
cd nRF5x-Command-Line-Tools_9_4_0_OSX
tar xjvf ~/Downloads/nRF5x-Command-Line-Tools_9_4_0_OSX.tar
After that you’ll want to configure the SDK to point to the correct compiler that you installed.
First, run the following command:

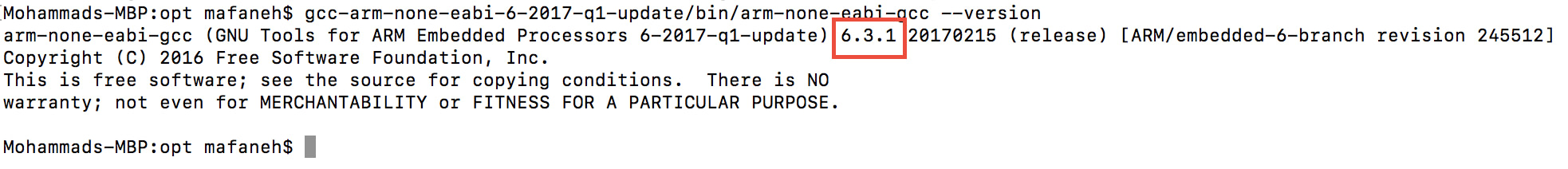

~/opt/gcc-arm-none-eabi-6-2017-q1-update/bin/arm-none-eabi-gcc --version
You should see an output similar to:

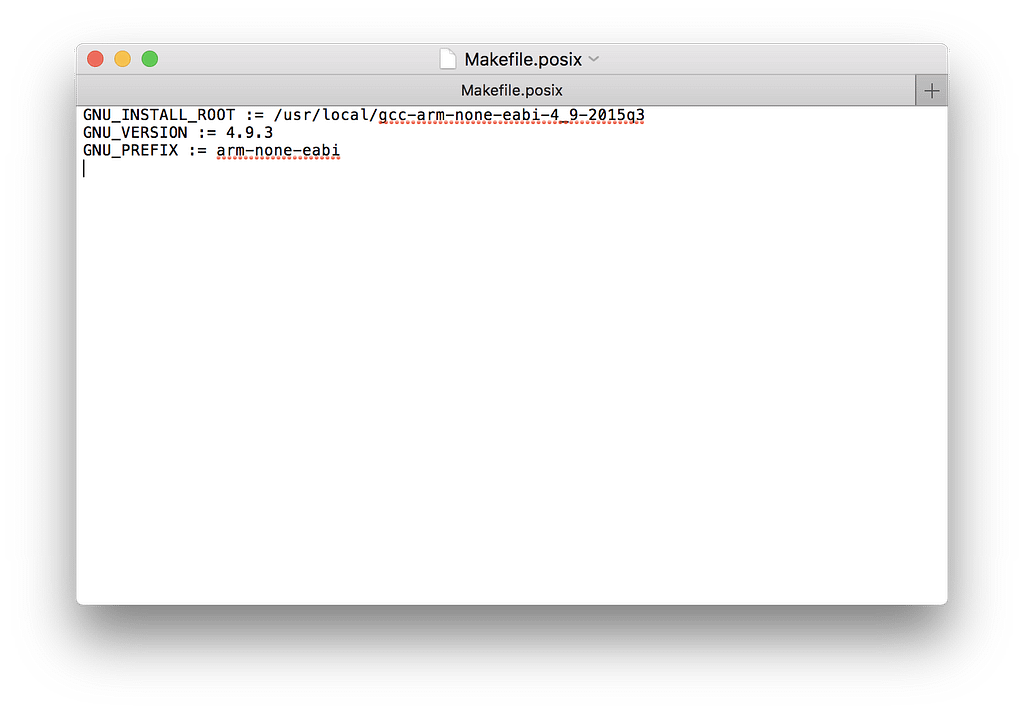

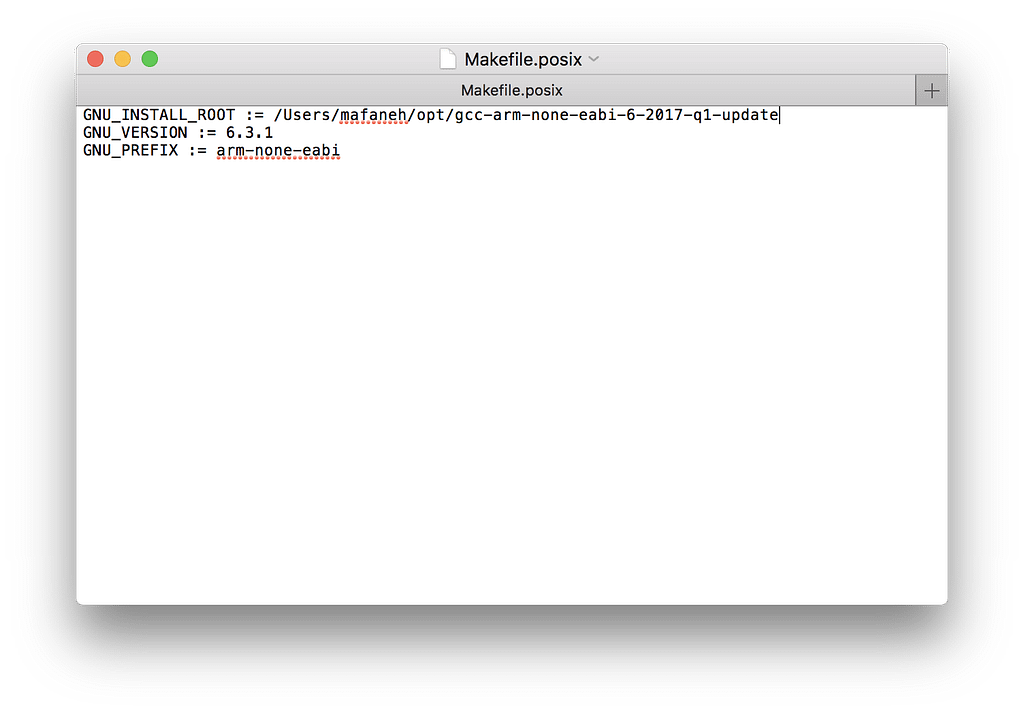

Locate the Makefile.posix file in a Finder session (under ~/opt/nRF5_SDK_13.0.0/components/toolchain/gcc) and edit the file to correspond to the version and location we have it installed in. For example, mine changed from:
Note: If you are using nRF SDK 14.0.0 or above, you will need to include “/bin” appended to the end of the path.

Install a serial terminal program

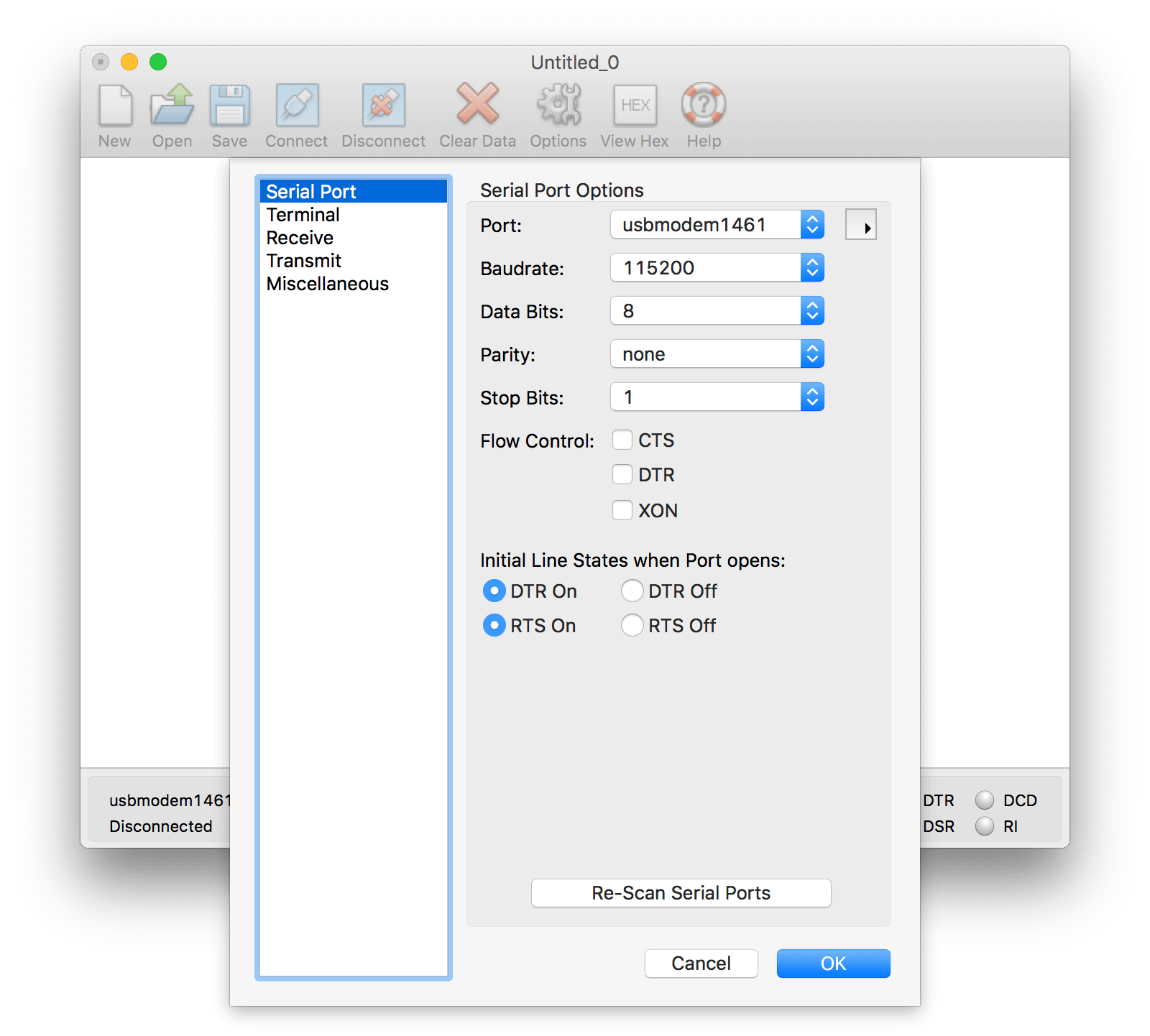

You can use any serial terminal program that runs on macOS. I prefer a multi-platform program called CoolTerm (download it here).

Set up the development project in NetBeans

We’ll be running an example included in the nRF SDK called ble_app_hrs (Heart Rate Service demo).

Launch NetBeans.

Configure the armgcc toolchain.

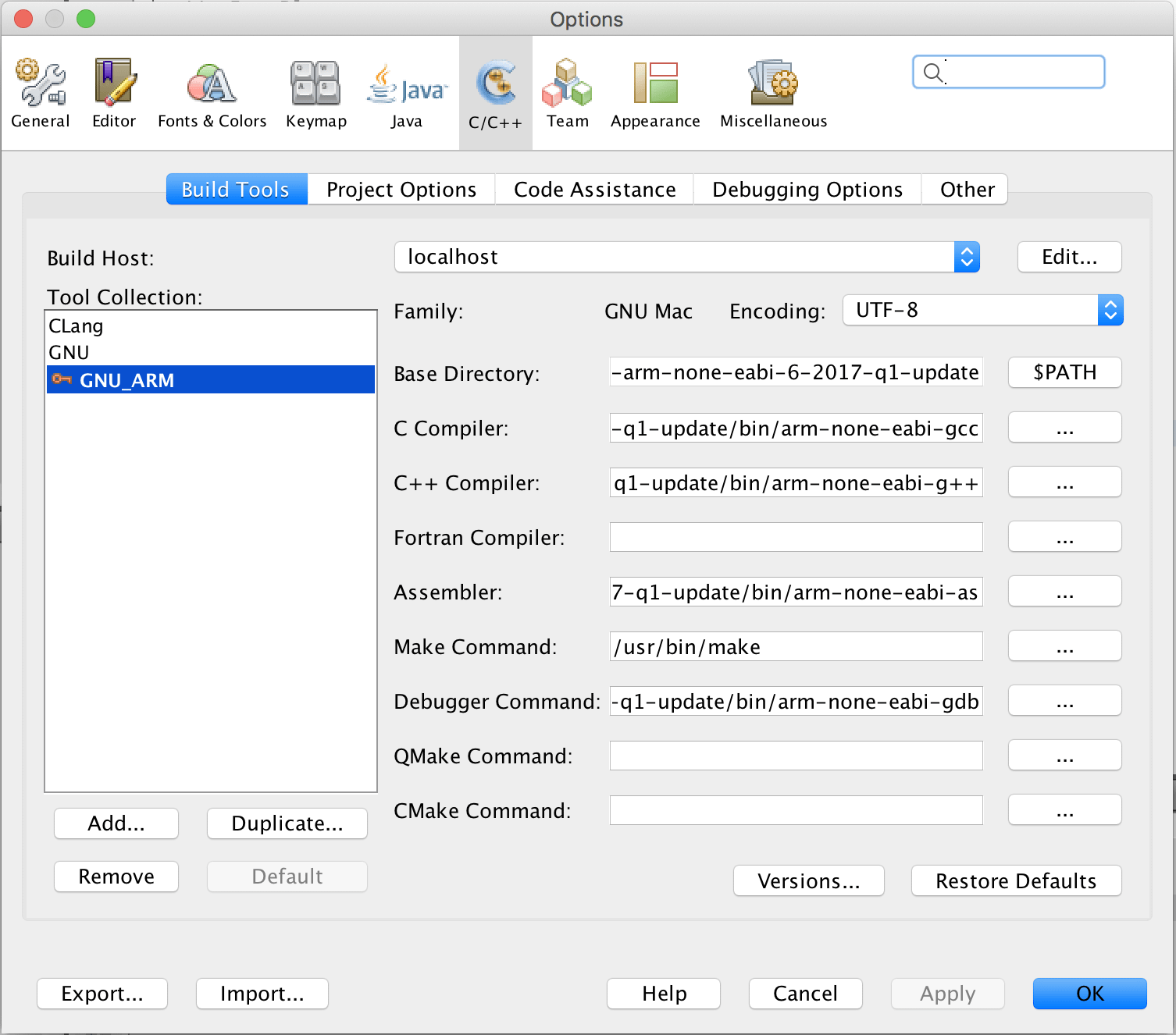

Navigate to the Netbeans menu -> Preferences -> C/C++ tab -> Build Tools
Click on Add

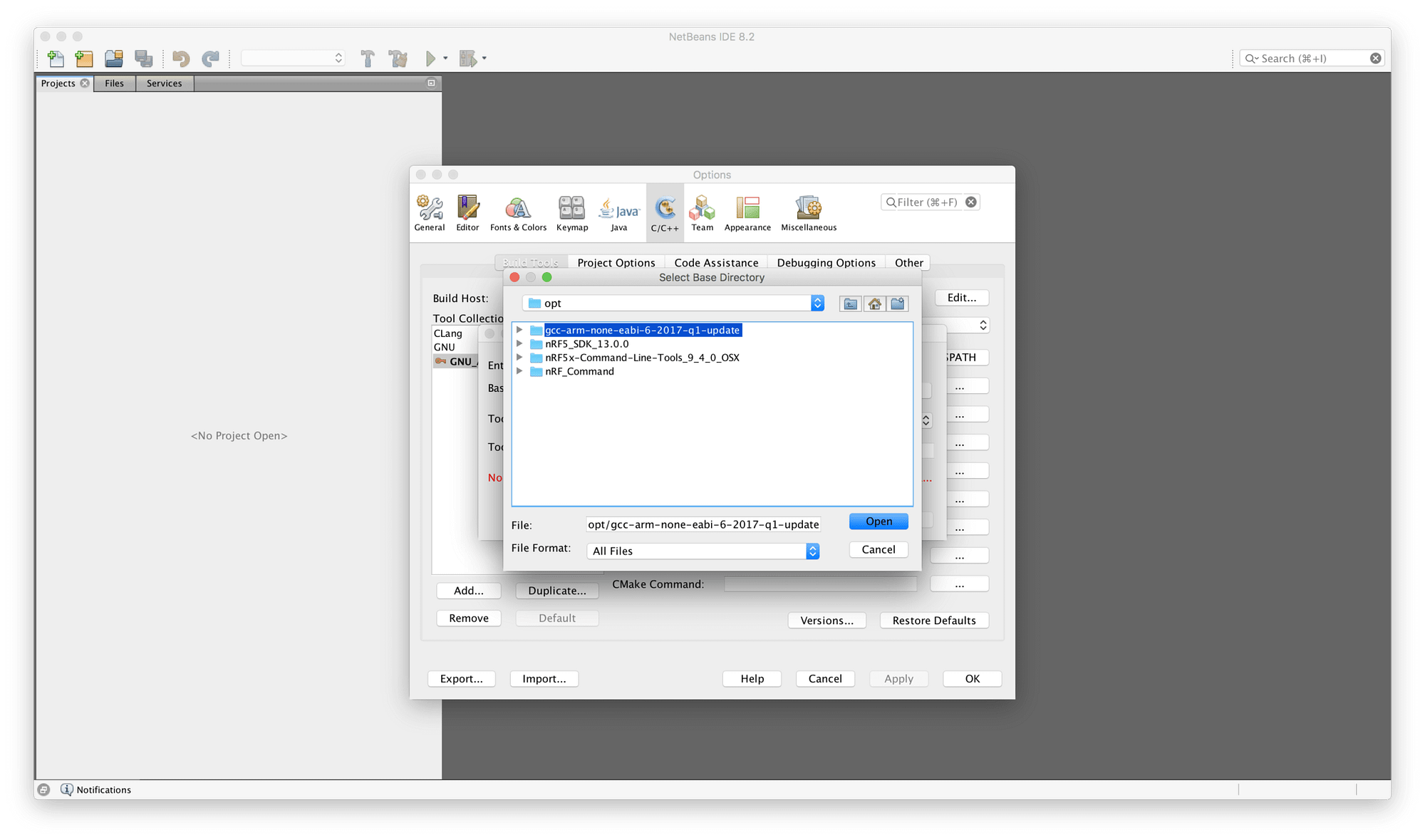

Browse and locate the folder for the gcc compiler (mine is at ~/opt/gcc-arm-none-eabi-6-2017-q1-update)

Click Open
Choose GNU Mac for Tool Collection Family
Type a name like “GNU_ARM
First we need to add the path to the nRF command line tool to our Run path so we can flash the target from the IDE
Click on $PATH
Under Modify Run Command Path:
Add the folder for nrfjprog to the PATH variable
(for me I added ;${HOME}/opt/nRF5x-Command-Line-Tools_9_4_0_OSX/nrfjprog/)
Click OK
Set the C Compiler, C++ Compiler, Assembler, Debugger command as following (make should already be set):
C Compiler: ${HOME}/opt/gcc-arm-none-eabi-6-2017-q1-update/bin/arm-none-eabi-gcc
C++ Compiler: ${HOME}/opt/gcc-arm-none-eabi-6-2017-q1-update/bin/arm-none-eabi-g++
Assembler: ${HOME}/opt/gcc-arm-none-eabi-6-2017-q1-update/bin/arm-none-eabi-as
Debugger: ${HOME}/opt/gcc-arm-none-eabi-6-2017-q1-update/bin/arm-none-eabi-gdb
(If you’re going to be using NetBeans a lot for developing on the nRF platform go ahead and set the compiler as the Default)
Press OK

Create the NetBeans project
Navigate to the File menu -> New Project

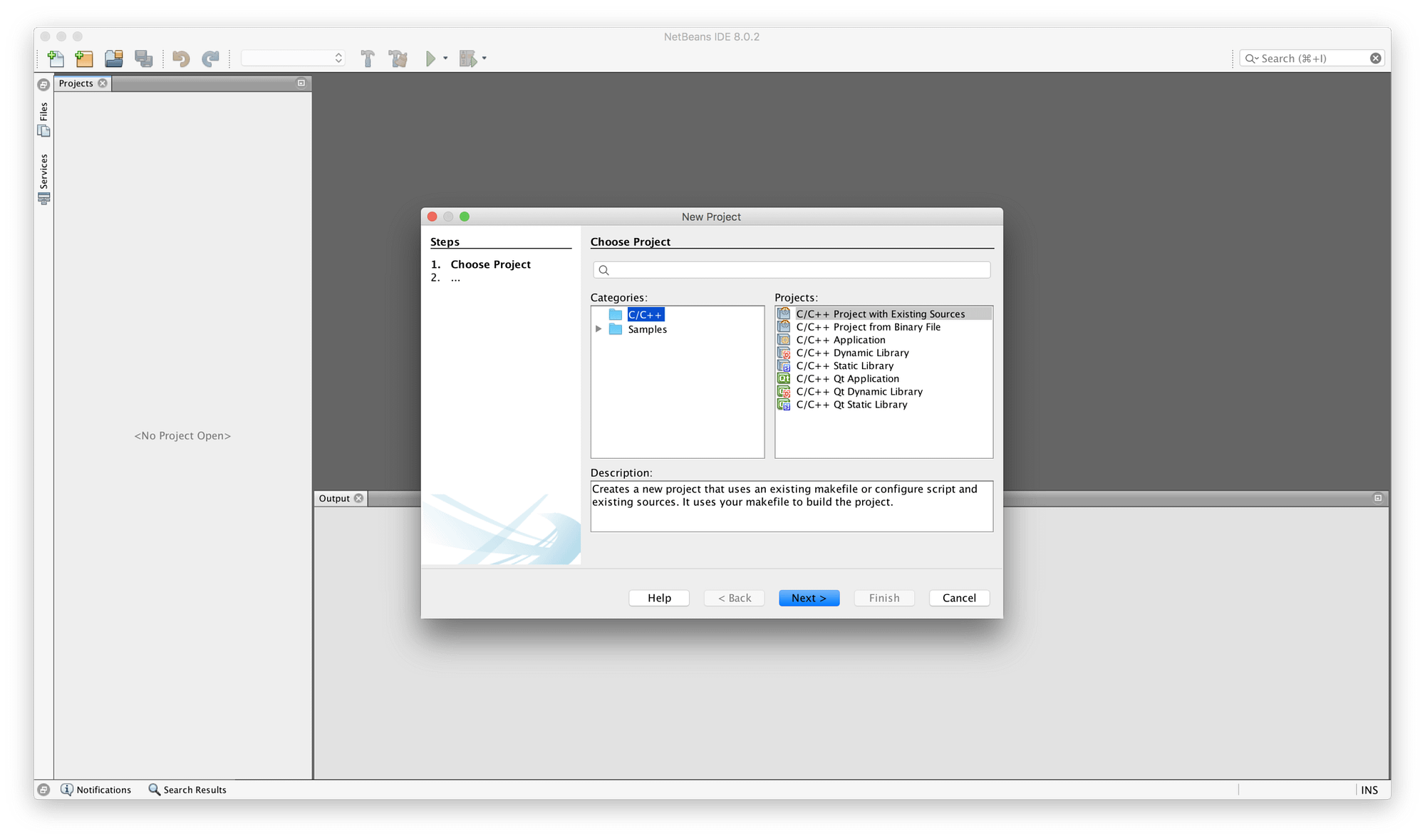

Choose C/C++ Project with Existing Sources
Click Next
Click the Browse button and navigate to the folder ${HOME}/opt/nRF5_SDK_13.0.0/examples/ble_peripheral and select the ble_app_hrs folder

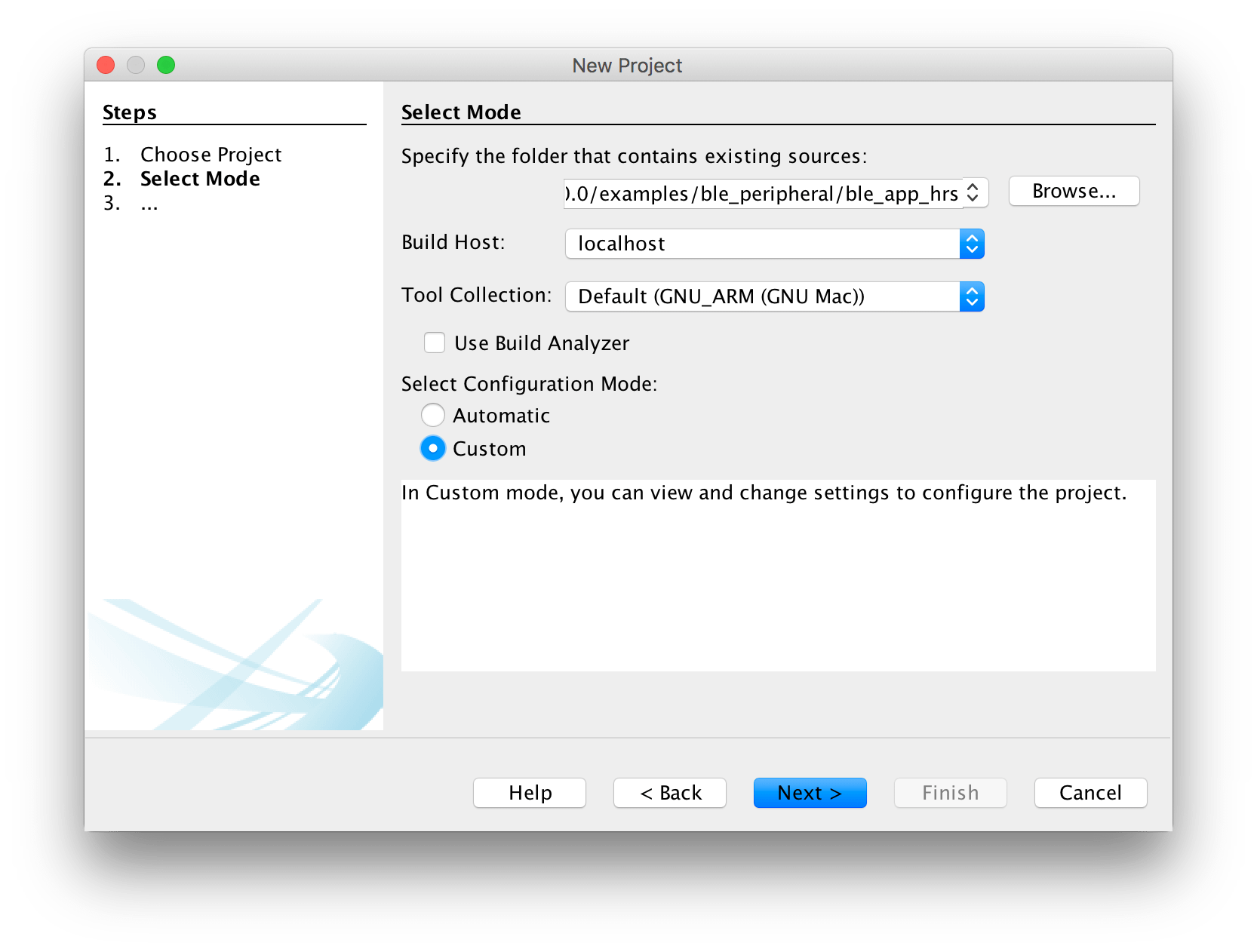

Select “Custom” under “Select Configuration Mode:
Disable the “Use Build Analyzer” option
Hit Next

Make sure the Pre-Build Step option is checked

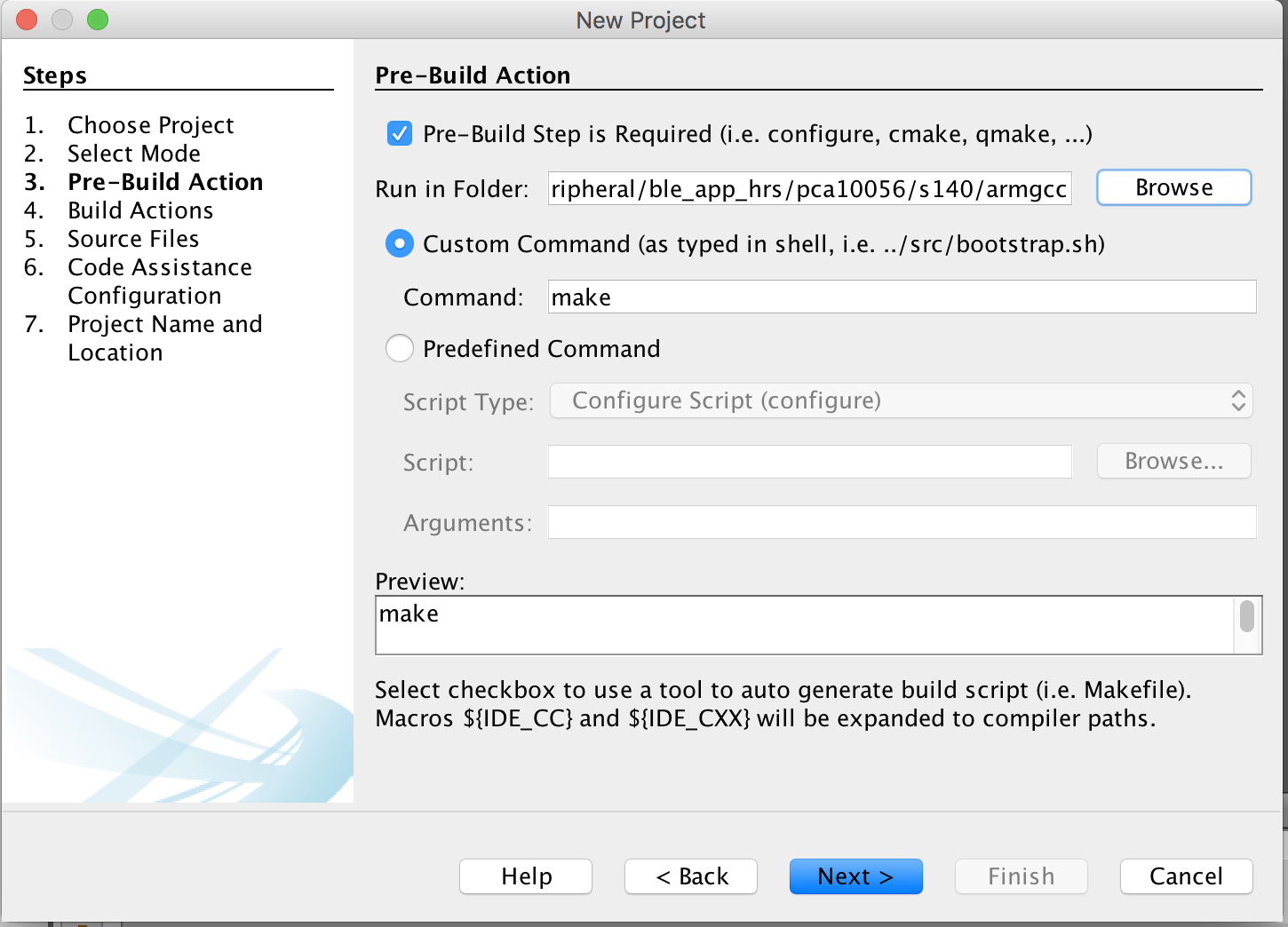

Click Browse and navigate to the folder ${HOME}/opt/nRF5_SDK_13.0.0/examples/ble_peripheral/ble_app/hrs/pca10056/s140/armgcc/
Hit Select
Under Custom Command -> Command type: make

Hit Next until you get to the Project Name and Location step
Name the project (preferably a name different than the original ble_app_hrs name)
Click Browse and choose a folder where you want the NetBeans project to be created (I prefer a Projects folder under my home directory)
Click Finish

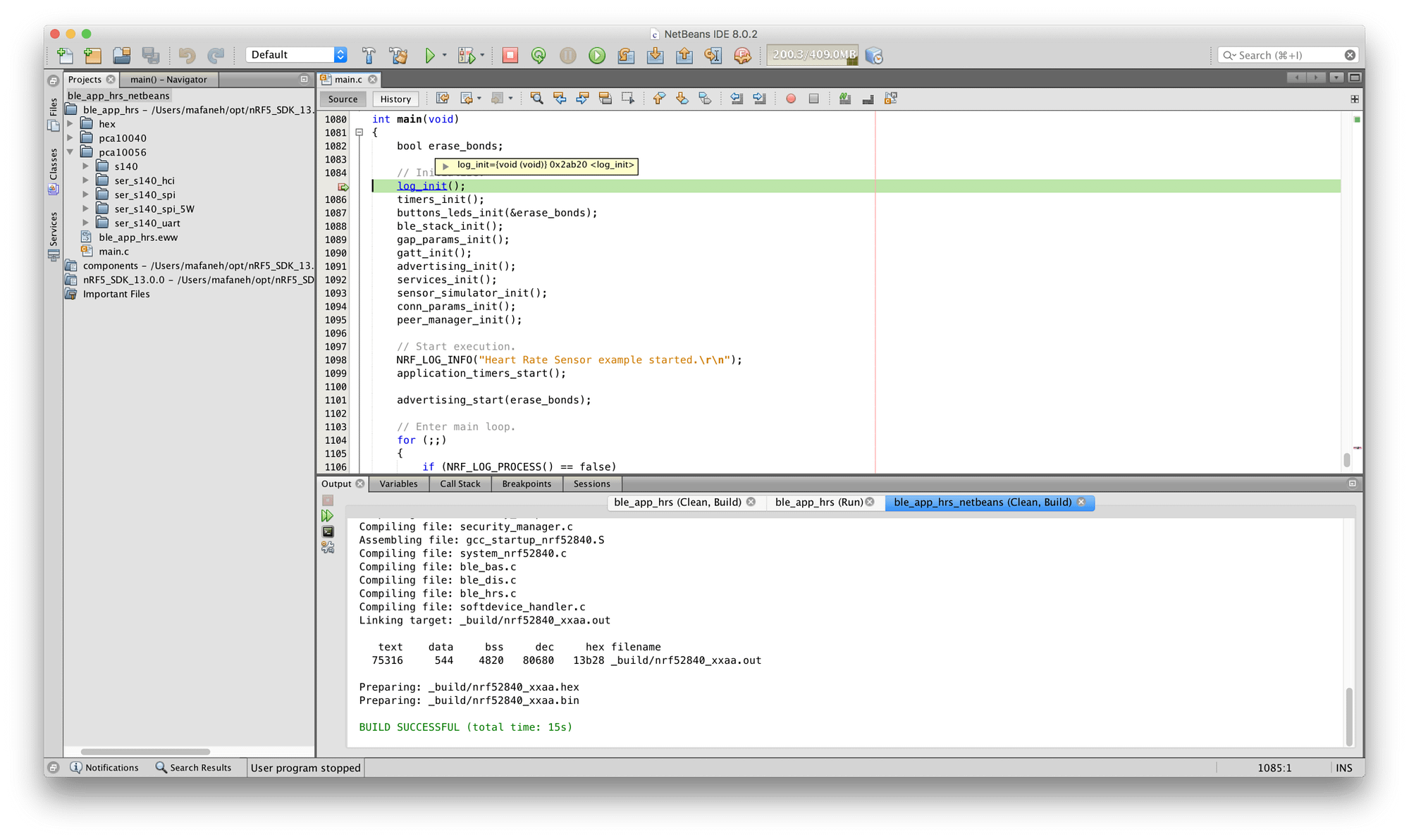

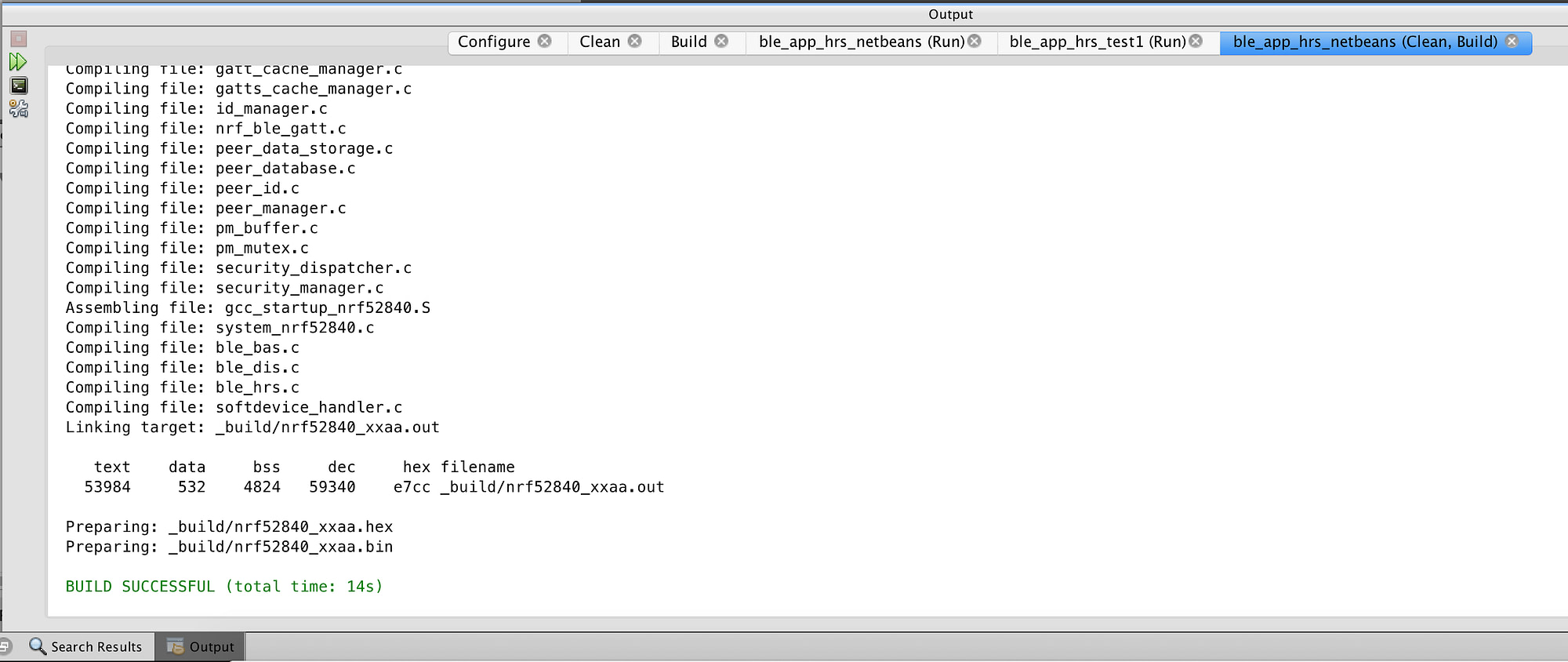

The project should start building automatically and (fingers-crossed) the build will succeed.

This build is fine if we want to just flash the target and let it run. However, if we want to debug the application we need to make some modifications to Makefile.
In the Projects window look for the label Important Files, expand it and double click on Makefile.
Scroll down the file until you find the section:

change the line to:

This will remove the code optimization performed by the compiler and also ensure all debug symbols needed by gdb are produced.
After this step, you’ll want to clean and rebuild your project.

Configuring the NetBeans project
Right Click on the Project in the Project window, Click Properties
Navigate to Code Assistance -> C Compiler
Click the “…” next to Include Directories
Click Add
Navigate to ${HOME}/opt and click on the nRF5_SDK_13.0.0 folder, then click Select
Press OK
Right-click on the Project -> Code Assistance -> Reparse Project
This will make sure that functions and API calls are parsed correctly, and that you can navigate to function and symbol definitions and be able to browse the source code more efficiently (the whole point of using an IDE!).
Note: If you’re running into issues and still seeing a lot of red underlined #include and function calls, try this:

Right click on the Project
Click on Code Assistance
Configure Code Assistance
Select Analyzer : Search file system for C/C++ header files
Hit Next
Browse to locate the …..opt/nRF5_SDK_13.0.0 folder and select it
Hit Next
Hit Finish

Configure the Run command (to flash the target)
Right click the Project name -> Properties -> Run
Replace the Run Command with make flash_softdevice flash

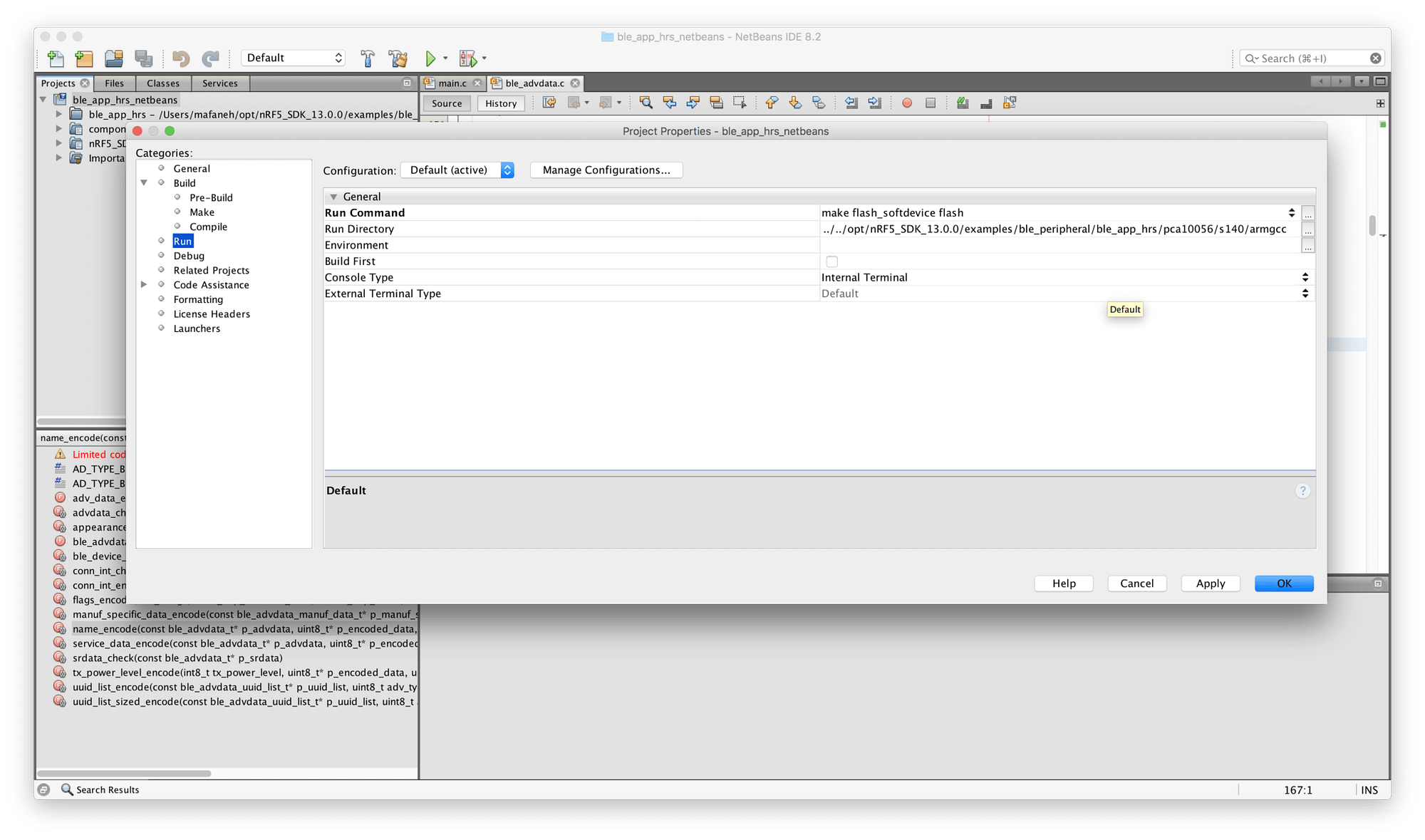

Your configuration should look something like this:

Hit OK
Make sure the development kit is connected to your computer and the LED (labeled LED5) right next to the MCU labeled PCA10056 is lit-up.
Hit the Play button at the Top of the Editor window and make sure the operation runs successfully.

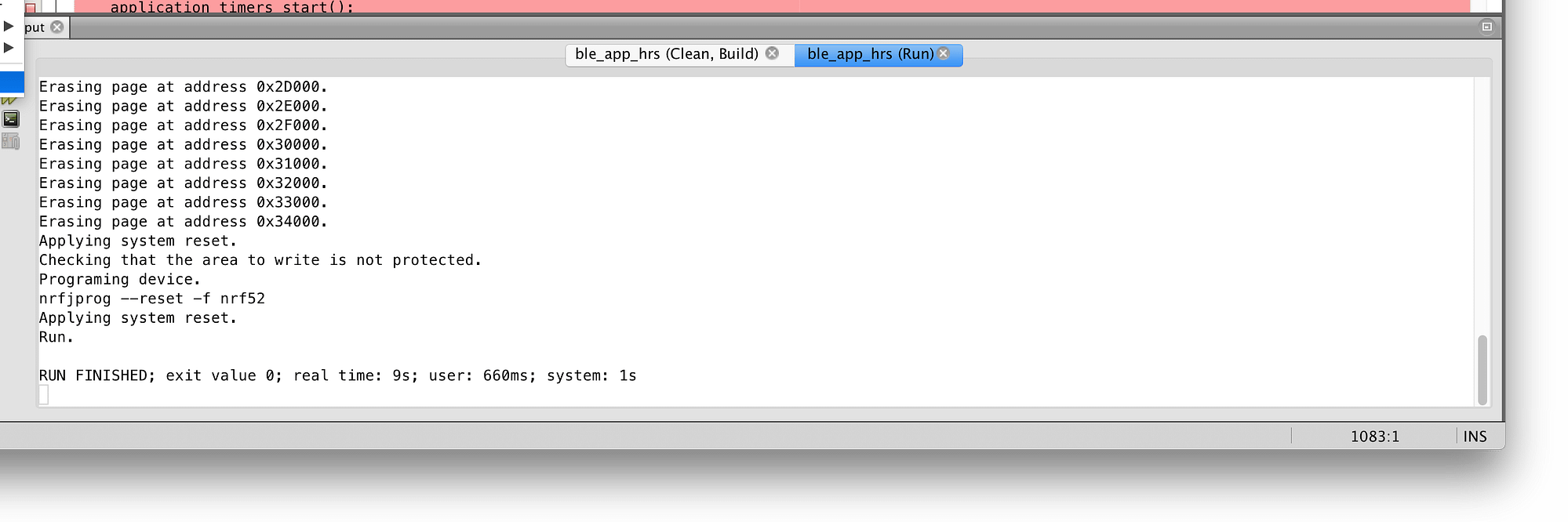

The Output window should look something like this:

Note: You can remove the “flash_softdevice” part, it is only needed once or when the softdevice firmware changes. (I prefer to keep it just in case – worth the few extra seconds added…)

Setting the Build Result file
Project Properties -> Make -> Build Result -> “…” button
Navigate to the ble_app_hrs/pc10056/s140/armgcc/_build/nrf52840_xxaa.out (make sure you build before this step, otherwise an output file and the _build folder won’t exist)

Set up gdbserver in NetBeans
Tools menu -> Plugins -> Available Plugins (may need to click “Check for Newest”)

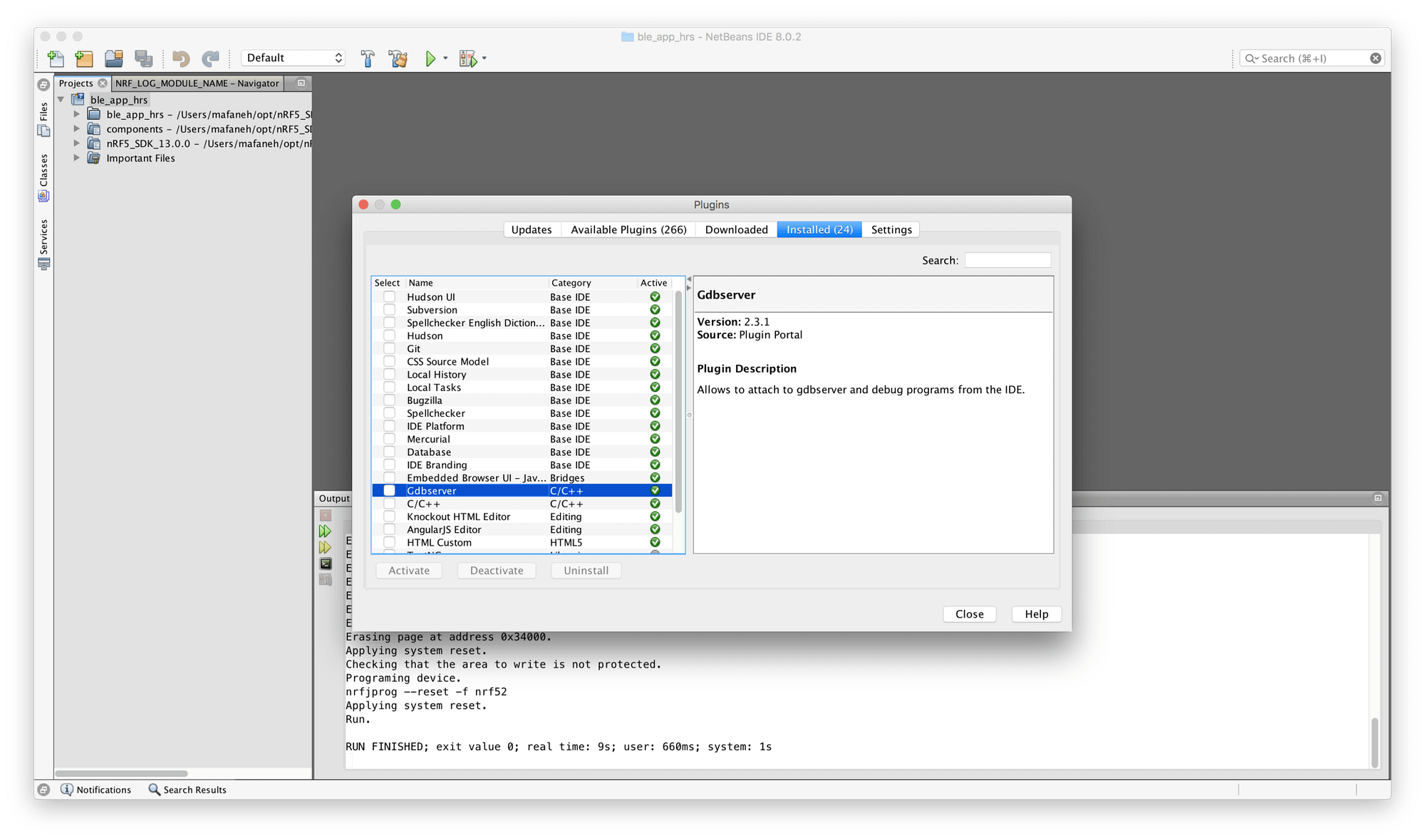

Find the C/C++ gdbserver plugin and install it


In a terminal window, run the following command:

JLinkGDBServer -device nRF52840_xxAA -if swd -endian little -speed 1000 -port 2331 -singlerun -notimeout

Let’s make sure we understand each of the arguments:
-device nRF52840_xxAA: sets the device to the nRF52840
-if swd: sets the interface to SWD or Serial Wire Debug which is the interface used on the development kit we’re using
-endian little: sets the configuration to little endian
-speed 1000: sets the speed to 1000 Hz or 1 kHz
-port 2331: sets the IP port for the gdbserver to 2331 (you can change it to whatever port number you want, just make sure you change it accordingly in NetBeans
-singlerun: this will configure gdbserver to accept a single connection from gdb, and will exit upon termination of that one debug session
-notimeout: this will disable any timeout waiting for a connection from gdb.Once you run the command you should see an output similar to this:
(Insert picture of terminal session showing the gdbserver creating the session)

Now on the actual debugging!
Here we’ll learn how to debug a target program in real-time and step through the code.
First set a breakpoint in the main() function in main.c (in our example it is located under ble_app_hrs/main.c and the last part of that file.
I set mine at log_init();

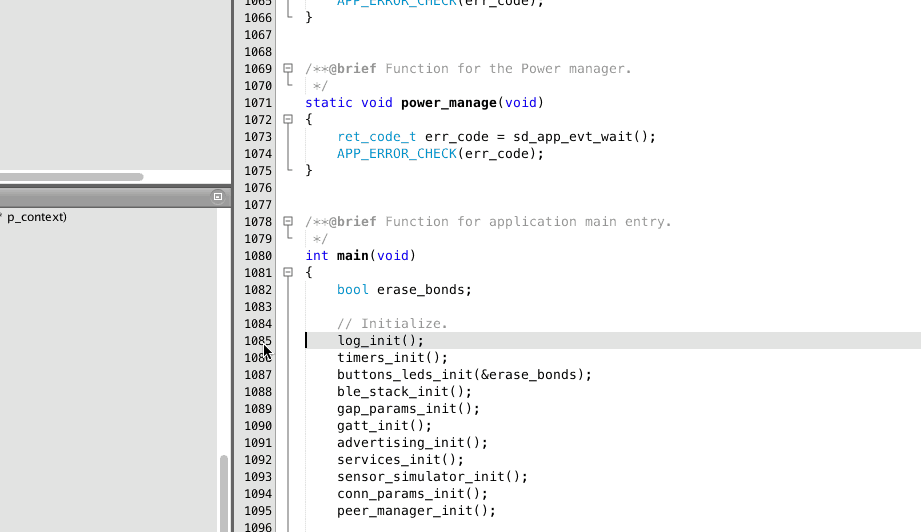

The way you set a breakpoint is click in the margin on the line number of the desired line.

Now make sure your JLinkGDBServer is running in the terminal and come back to NetBeans.
Note: Reader Mike Wirth pointed out that there are some issues with running JLinkGDBServer in a separate Terminal window. The solution is to run the command from within NetBeans. You can do so by navigating to the menu Window -> IDE Tools -> Terminal and running the command from there (within NetBeans).

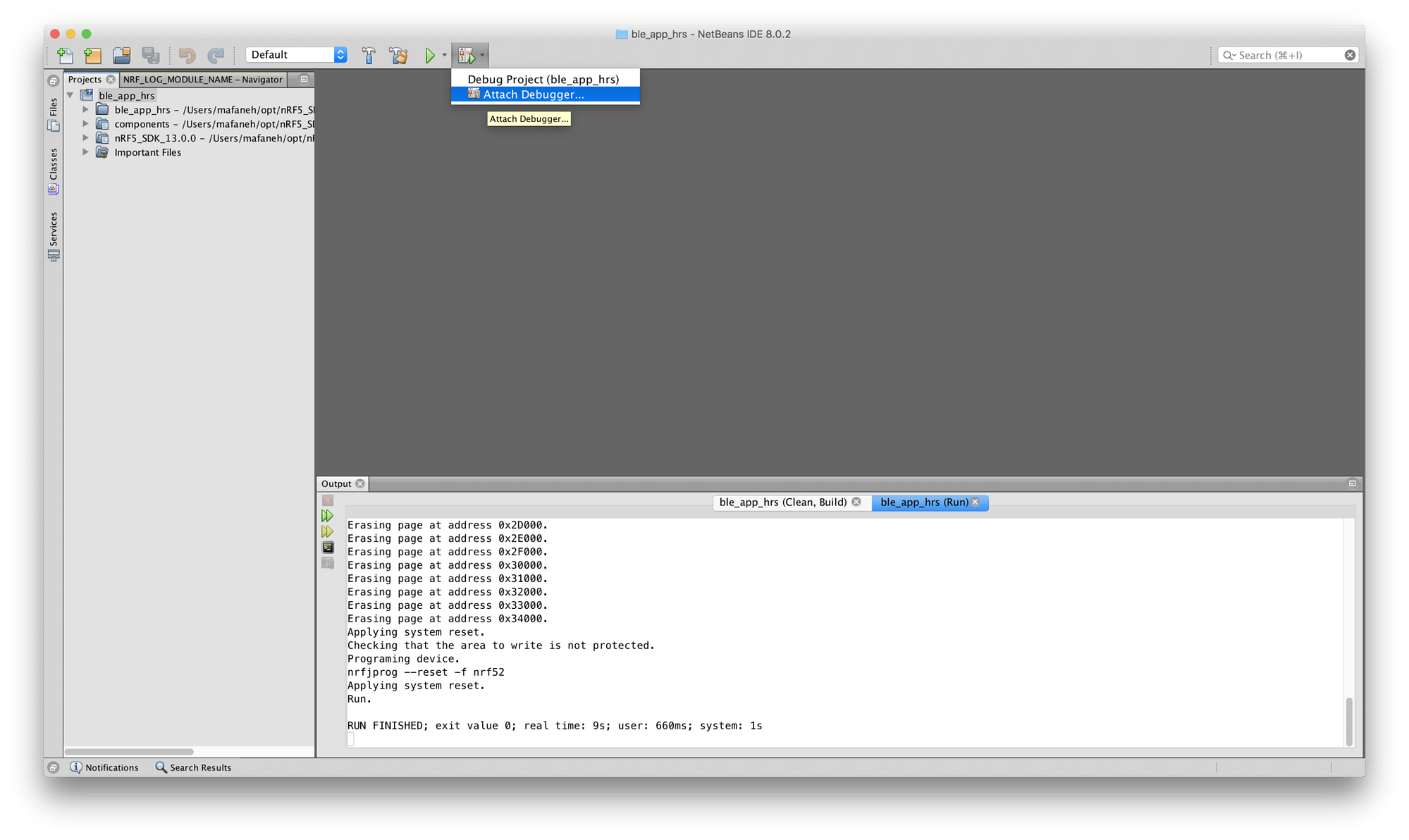

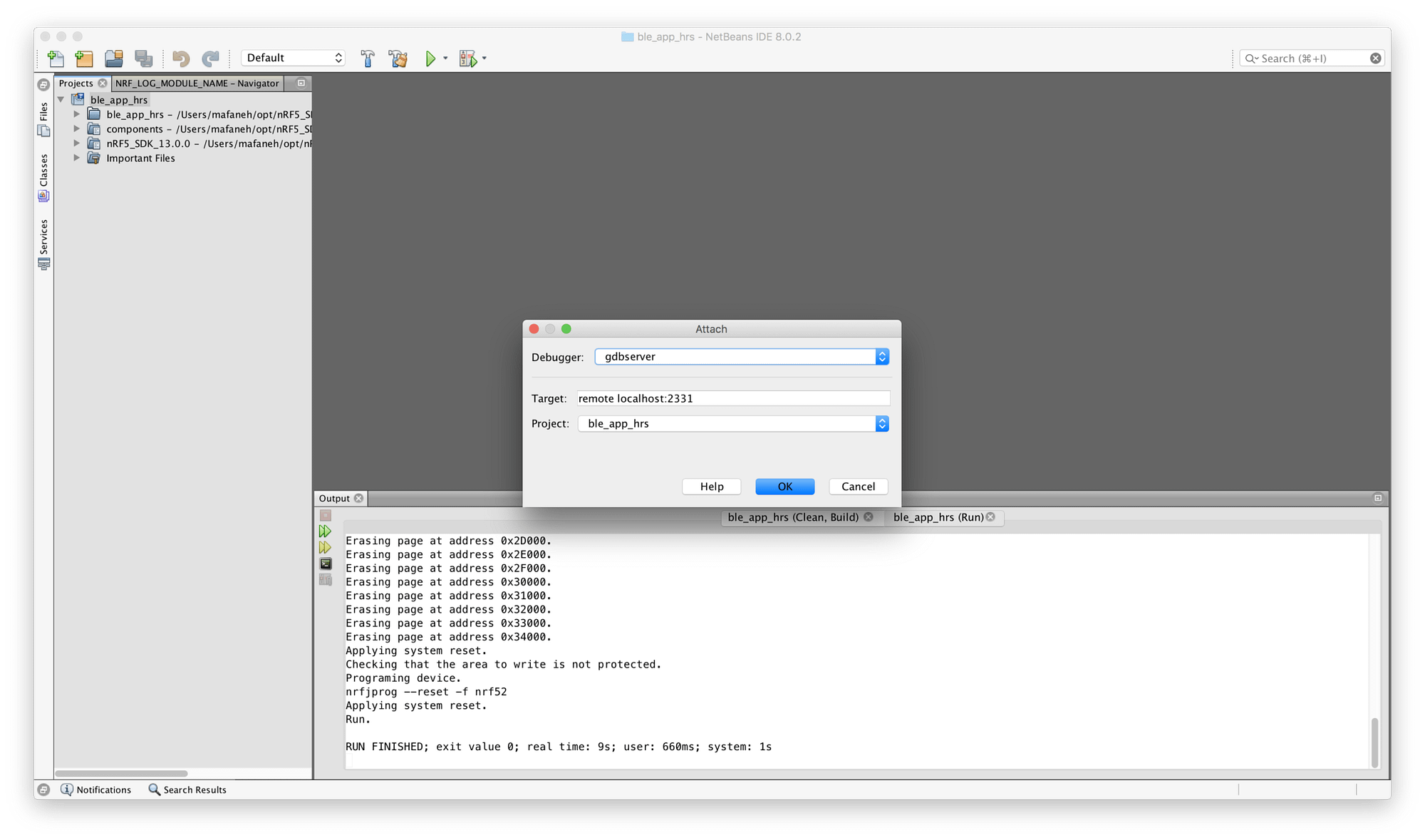

Click the Dropdown menu arrow on the debug button then select “Attach Debugger”.

Make sure the Target is set to: remote localhost:2331 (this is the port we set for the GDB server on the local machine)

Basically, JLink connects to the Interface chip (the chip on the dev kit that creates a mounted drive. It then creates a proxy gdbserver on the local machine that allows a gdb process to connect to and debug the target MCU (in this case the nRF 52840). Once you hit OK, you should see NetBeans connect to the gdbserver and momentarily it’ll stop at the breakpoint you set in the main function. It may take a few seconds before it hits the breakpoint, but eventually the breakpoint line will be highlighted in GREEN.

If you run into issues and don’t see it stop at the breakpoint, try restarting the JLinkGDBServer command
We ran JLinkGDBServer in singlerun mode, which means once you hit the Stop Debug button in NetBeans you will have to start the GDBServer again. To run continuously run the command without the “-singlerun” argument. Then when you stop debugging and initiate the remote debugging again JLink will restart the target.

Note: there are some well-known difficulties and challenges with debugging applications running with the SoftDevice stack. More about it here and here


The interface MCU also provides a serial output that you can monitor through a terminal program on your development machine. You may have to do a trial and error, for me the serial shows up as “usbmodem1461”. Set the Baud rate at 115200, hit OK then click Connect.

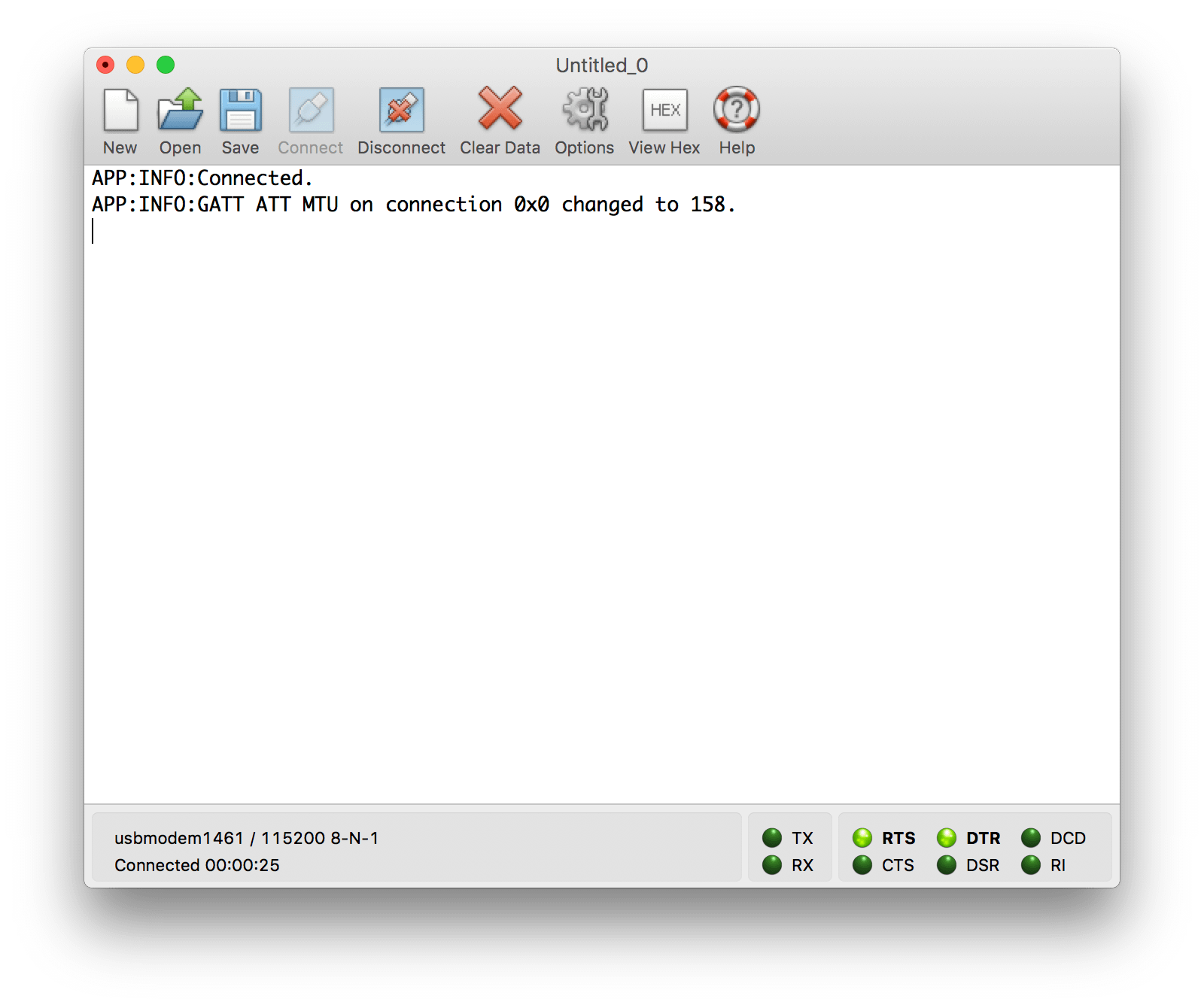

You should see log messages when you connect to the BLE peripheral. For example:

You can increase the log level by modifying the following in sdk_config.h at …./ble_app_hrs/pca10056/s140/config/sdk_config.h


The default value for NRF_LOG_DEFAULT_LEVEL is 3. The different levels are:
<0=> Off
<1=> Error
<2=> Warning
<3=> Info
<4=> Debug

Summary and Closing

In this tutorial we went over how to set up, install and configure a project in NetBeans to develop for the nRF52840 Preview Development Kit. In the upcoming blog posts I will be going over:

  • More in-depth tutorials for development of actual BLE applications
  • Utilizing the new Bluetooth 5 features
  • Other tutorials for setup and development on other popular BLE dev kits.

Feel free to add any comments or questions in the comments section below. Hope you found this post useful!

Don’t forget to sign up for the newsletter to get notified when the next post goes live!

By | 2017-11-08T22:54:29+00:00 May 10th, 2017|Categories: BLE technology|Tags: , , , , , , , , , |59 Comments

About the Author:

Mohammad Afaneh
Mohammad has a strong passion for developing Bluetooth Low Energy and IoT applications. He helps developers develop for BLE faster through detailed technical tutorials, articles, and videos. He enjoys playing sports, spending time with his wife and kids, and reading non-fiction books. Connect with him on LinkedIn at


  1. João Neves May 19, 2017 at 6:57 am - Reply

    First many thanks for this amazing tutorial!

    I’m having one problem. At “Configure the Run command (to flash the target)” step I don’t get what you show, but the Run is finished right after press the button. I did all the previous steps and everything works.

    The message i get in the Output window is this:
    /bin/sh: line 0: exec: make: not found

    RUN FINISHED; exit value 127; real time: 10ms; user: 0ms; system: 0ms

    Can you help me understand what is wrong?

    Many thanks!

    • Mohammad Afaneh
      Mohammad Afaneh May 19, 2017 at 7:22 am - Reply

      Thanks João! Glad you found it helpful.

      Can you check a couple of things:
      – Make sure the Run directory in the Project Properties is set to “/opt/nRF5_SDK_13.0.0/examples/ble_peripheral/ble_app_hrs/pca10056/s140/armgcc”
      – Under Netbeans -> Preferences -> C/C++ -> “Make Command” is set (for me it’s set to /usr/bin/make)

      Let me know if those suggestions still don’t fix the problem.

      • João Neves May 19, 2017 at 10:16 am - Reply

        Hi Mohammad! Thanks a lot for the quick answer!

        Yes. I checked both things (first one I even tried to set the path “by hand”) and they are as you say. I still have the error.

        How you have all the properties at the Run directory?


        • Mohammad Afaneh
          Mohammad Afaneh May 19, 2017 at 12:09 pm - Reply

          Ok, I’ve uploaded an image of my Run configuration here (also added in the post):

          One other thing to try, run the “make flash_softdevice flash” command from the command line at the location “~/opt/nRF5_SDK_13.0.0/examples/ble_peripheral/ble_app_hrs/pca10056/s140/armgcc” and see if it works there. If it does, then it’s definitely a NetBeans configuration issue

          • João Neves May 19, 2017 at 2:06 pm

            Ok. So my configuration is the same than yours.

            On the second part it doesn’t work as well. It gives me the same kind of error.

            Flashing: s140_nrf52840_5.0.0-2.alpha_softdevice.hex
            nrfjprog –program ../../../../../../components/softdevice/s140/hex/s140_nrf52840_5.0.0-2.alpha_softdevice.hex -f nrf52 –sectorerase
            make: nrfjprog: No such file or directory
            make: *** [flash_softdevice] Error 1

            Looks like some file is missing or with some different name.

            Many thanks once again!

        • Mohammad Afaneh
          Mohammad Afaneh May 20, 2017 at 7:11 am - Reply

          João, I sent you an email. It’ll be easier to communicate and try to resolve the problem that way.

          • Andreas June 5, 2017 at 4:15 pm

            I ran into the same error as you, João. My issue was under the section “Configure armgcc toolchain.” I had a misspelling in Modify Run Command Path (adding nrfjprog to PATH). My PATH now looks something like this:


            Hope that helps!

          • Mohammad Afaneh
            Mohammad Afaneh June 8, 2017 at 5:02 pm

            Thanks for the insight Andreas! João, you may want to check your PATH just one more time to make sure there are no typos.

          • Daniel October 12, 2017 at 12:39 pm

            I have exactly the same problem now. Is there any solution for this you discussed via mail?

            Great tutorial!
            Thanks alot

          • Mohammad Afaneh
            Mohammad Afaneh October 18, 2017 at 8:12 am


            We never got to the bottom of the issue. I think João worked around it by running the command from a terminal instead of within NetBeans. I haven’t run into this issue before. Did you check the Run Command Path (see Andreas’s comment above)?

          • Jand November 21, 2017 at 3:05 pm

            Thanks for such a great tutorial – it was so easy to follow and it worked very well.

            I also had the problem with nrfjprog not being found and I think it has to do with fast/slow path addressed in this stackoverflow link (
            I echoed the value of PATH and it was actually /usr/bin:/bin:/usr/sbin:/sbin:/usr/bin

            I made 2 changes to the makefile that invoked nrfjprog:
            – add PATH := $(PATH):$(HOME)/opt/nRF5x-Command-Line-Tools_9_7_1_OSX/nrfjprog
            – add a semicolon at the end of the nrfjprog command (example: nrfjprog -f nrf52 –reset 😉 to force slow path

            I am using macOS 10.13.1, NetBeans 8.2, nRF5_SDK_14.2.0_17b948a, nRF5x-Command-Line-Tools_9_7_1_OSX, s132, pca10040.

  2. João Neves May 19, 2017 at 7:01 am - Reply

    By the way… you should mention that Xcode is required to be installed on the Mac.

    Anyway…great job man! 😉

    • Mohammad Afaneh
      Mohammad Afaneh May 19, 2017 at 7:23 am - Reply

      Yes, thanks for letting me know! I had it installed and didn’t think about it until you mentioned it 🙂

      I’ll edit the post and add that as a requirement.


  3. Jet May 31, 2017 at 2:48 am - Reply

    Great! It is amazing tutorial! Can I translate this blog into Chinese?

    • admin June 6, 2017 at 1:41 am - Reply

      Sure, would be appreciated!

  4. Ambrose June 8, 2017 at 4:39 pm - Reply

    Awesome tutorial – many thanks Mohammad!

    • Mohammad Afaneh June 8, 2017 at 4:56 pm - Reply

      Thanks Ambrose! Glad you found it useful.

  5. Ray July 3, 2017 at 9:24 pm - Reply

    Hi, great tutorial and it helped me set up my environment, I have run into a problem however. I was trying the ble_app_hids_keyboard example and although it compiles and uploads on to the board fine, when i open main.c in the IDE everything after “#if BUTTONS_NUMBER < 2
    #error "Not enough resources on board"
    is greyed out with and a yellow bulb on the left of the line says "Preprocessor stopped at this #error directive"

    Any idea what might be going on? Would greatly appreciate your inputs.

    • Mohammad Afaneh
      Mohammad Afaneh July 4, 2017 at 8:29 am - Reply

      Ray, thanks! Glad it helped you out.

      Yes, this is merely an error in parsing the file and is not affecting compilation.

      The reason behind this error is the IDE does not recognize some of the macros defined by the project. In this case, there’s a macro that defines the board type called: BOARD_PCA10056.

      The way to fix it is to add this to the project by right-clicking on the Project -> Properties -> Code Assistance -> C Compiler and then add BOARD_PCA10056 to the “Preprocessor Definitions” field. After that, right click on the Project again and select Code Assitance -> Reparse Project. This should fix the issue and the BUTTONS_NUMBER should now show up in Blue and the yellow bubble should disappear.

      You may run into other similar parsing problems, in that case, what you need to do is add each of the processor definitions as you did with BOARD_PCA10056. The preprocessor definitions are defined in the ./pca10056/s140/armgcc/Makefile under: CFLAGS += -DBOARD_PCA10056…etc

      Another (easier) way is to edit the configurations.xml file located under the NetBeans project folder and add all the preprocessors in the preprocessorList section.

      Let me know if you still run into issues.

      • Ray July 6, 2017 at 1:20 am - Reply

        Thanks a lot for the prompt reply. That did the trick 🙂 There a couple of files for which it says there are unresolved includes inside them, from what i could understand they are happening because of these header files are calling header files which in turn are calling header files which are already explicitly included in main.c . But its not impacting anything in terms of compiling or executing or debugging. Thank you again for such a nice guide. 🙂

  6. July 13, 2017 at 12:30 am - Reply

    I thought others may benefit from this tutorial especially if they’re looking for other options for development on a Mac using open source tools.

  7. Ray July 14, 2017 at 9:16 pm - Reply

    Hello, I had another question if you can provide some guidance. I am having some trouble with some of the debug steps when active connections are involved as i am facing time-out issues, I was wondering if it is a possibility to put display statements through the Netbeans IDE ( like printf in C/C++). So that i can get variable values or follow execution path without needing to pausing the execution.

    • Mohammad Afaneh
      Mohammad Afaneh July 16, 2017 at 4:44 am - Reply

      Hi Ray,

      Yes, there’s a way to do that within NetBeans (if you’re running on a Mac or Linux).

      Basically, you can run a terminal within NetBeans and then run “screen” to view the serial output. You run the Terminal by going to Tools -> Open in Terminal. Then you can run the command to connect and view the serial output from the target. For me, the command I run is:

      screen /dev/cu.usbmodem1451 115200 -L

      After that, you’ll be seeing the serial output from within NetBeans rather than in another separate terminal program.

      To make sure you’re connecting to the right serial port, you can look at the devices with a name similar to /dev/cu.*.

      Hope this helps!

  8. Mike July 19, 2017 at 12:21 am - Reply

    Thanks for the great tutorial! I have followed your instructions for setting up the environment on Ubuntu 16.04 running inside Oracle VM VirtualBox. When I tried to flash the ble_app_hrs example, I run into the following errors:

    ERROR: There is no debugger connected to the PC.
    Makefile:243: recipe for target ‘flash_softdevice’ failed
    make: *** [flash_softdevice] Error 41

    RUN FINISHED; exit value 2; real time: 130ms; user: 30ms; system: 50ms

    Do you have any idea regarding to this issue? I greatly appreciate your inputs.

    • Mohammad Afaneh
      Mohammad Afaneh July 19, 2017 at 12:34 am - Reply

      Mike, glad you found the tutorial useful.

      The only thing I can think of is that the USB port on which the development board is connected is not mounted to the VM.

      Try the following:
      – Unmount the device named JLINK from your host machine (should show up in your mounted drives)
      – Go to “Devices” under the top menu of the VM
      – Navigate to USB
      – Find and click on SEGGER J-LInk and click on
      – Make sure it is now showing with a check next to it

      I’ve seen problems with mounting the dev board to a VM, but it may work for you. Let me know if it works.

      Hope this helps.

      • Mike July 24, 2017 at 10:36 pm - Reply

        Thanks for your quick reply! Once the SEGGER J-link is selected in VM, I am able to flash the example to the development board. However, I still have some problem for debugging. When I insert the breakpoint and start the JLnkGDBServer, the breakpoint line is always red and never become green. Any ideas and suggestions? I really appreciate your great help!

        • Mohammad Afaneh July 25, 2017 at 1:53 pm - Reply

          Hi Mike, can you post the output of JLinkGDBServer? The output should show whether the breakpoint was recognized by the GDB Server or not – it would print out a confirmation of any breakpoints you set.

        • Krishna July 27, 2017 at 6:50 am - Reply

          Great Tutorial ,Thanks Mohammad Afaneh. I followed your tutorial for my nRF52DK on UBUNTU 16.04 Everything is working well but while debugging i set breakpoint which never become Green .

          Here is the my terminal log on JLinkJDBserver:

          SEGGER J-Link GDB Server V6.16j Command Line Version

          JLinkARM.dll V6.16j (DLL compiled Jul 24 2017 18:54:20)

          Command line: -device nRF52832_xxAA -if swd -endian little -speed 1000 -port 2331 -notimeout
          —–GDB Server start settings—–
          GDBInit file: none
          GDB Server Listening port: 2331
          SWO raw output listening port: 2332
          Terminal I/O port: 2333
          Accept remote connection: yes
          Generate logfile: off
          Verify download: off
          Init regs on start: off
          Silent mode: off
          Single run mode: off
          Target connection timeout: none
          ——J-Link related settings——
          J-Link Host interface: USB
          J-Link script: none
          J-Link settings file: none
          ——Target related settings——
          Target device: nRF52832_xxAA
          Target interface: SWD
          Target interface speed: 1000kHz
          Target endian: little

          Connecting to J-Link…
          J-Link is connected.
          Firmware: J-Link OB-SAM3U128-V2-NordicSemi compiled Jul 24 2017 17:30:12
          Hardware: V1.00
          S/N: 682941412
          Checking target voltage…
          Target voltage: 3.30 V
          Listening on TCP/IP port 2331
          Connecting to target…Connected to target
          Waiting for GDB connection…Connected to
          Reading all registers
          Read 1 bytes @ address 0x00000000 (Data = 0x00)
          Reading 64 bytes @ address 0x00020EC0
          Reading 64 bytes @ address 0x00020F00
          Read 1 bytes @ address 0x00020EFE (Data = 0x00)
          Setting breakpoint @ address 0x00020EFE, Size = 4, BPHandle = 0x0001
          Starting target CPU…
          …Breakpoint reached @ address 0x00020EFE
          Reading all registers
          Read 1 bytes @ address 0x00000000 (Data = 0x00)
          Starting target CPU…
          …Breakpoint reached @ address 0x00020EFE
          Reading all registers
          Read 1 bytes @ address 0x00000000 (Data = 0x00)
          Starting target CPU…
          …Breakpoint reached @ address 0x00020EFE
          Reading all registers
          Read 1 bytes @ address 0x00000000 (Data = 0x00)
          Starting target CPU…
          …Breakpoint reached @ address 0x00020EFE
          Reading all registers
          Read 1 bytes @ address 0x00000000 (Data = 0x00)
          Starting target CPU…
          …Breakpoint reached @ address 0x00020EFE
          Reading all registers
          Read 1 bytes @ address 0x00000000 (Data = 0x00)
          Starting target CPU…
          …Breakpoint reached @ address 0x00020EFE
          Reading all registers
          Read 1 bytes @ address 0x00000000 (Data = 0x00)
          Starting target CPU…

          • Mohammad Afaneh
            Mohammad Afaneh July 27, 2017 at 10:29 am



            Looks like the breakpoint gets set correctly (Setting breakpoint @ address 0x00020EFE, Size = 4, BPHandle = 0x0001), and then it hits it as well (…Breakpoint reached @ address 0x00020EFE).

            However, for some reason it is resetting the target right after this. Not sure what’s going on there, but I will try with a Linux installation on my side when I get a chance.

          • Krishna July 28, 2017 at 1:16 am

            Thanks For quick reply .I will also try to find reason why the target is getting reseted repeated.

  9. Jonah August 21, 2017 at 12:45 pm - Reply

    Hey Mohammad,

    I’m having trouble at the very beginning stages of the process. When I go to compile all the tools into one folder, i am getting an error message. I’m not sure what is wrong but if you could help that would be awesome. Thanks again for this great tutorial, it’s sweet!

    The following is all from the Command + Space –> type “terminal” part of the tutorial all the way at the top, specifically line 3:

    This is the output i’m getting: tar xjvf ~/downloads/gcc-arm-none-eabi-6-2017-q2-update-mac.tar.bz2
    tar: Error opening archive: Failed to open ‘/Users/jonahweyessa/downloads/gcc-arm-none-eabi-6-2017-q2-update-mac.tar.bz2’

    • Mohammad Afaneh
      Mohammad Afaneh August 21, 2017 at 1:23 pm - Reply

      Hey Jonah,

      A couple of things to check:

      – Make sure that the file exists and matches the name you’re passing to ‘tar’.
      – Check the permissions on the file (use ‘ls -l’ to display them and make sure the file is at least readable).

      The ‘tar’ command is used for extracting and uncompressing the archive file in this case, so after you run it, it should create a folder that starts with “gcc-…”

      Hope this helps!

      • Mohammad Afaneh
        Mohammad Afaneh August 21, 2017 at 1:43 pm - Reply

        One thing I noticed is that you have “downloads” all lower case. Usually on macOS, it will be “Downloads” instead, and since names are case sensitive you’ll need to make sure they match.

  10. Jonah August 27, 2017 at 5:43 pm - Reply

    Hey Mohammad,

    Thank-you very much that worked perfectly.

    On another note though, I’ve been going through some of the comments above and noticed some people had problems when it comes to building the project and having it run successfully. What worked for them unfortunately isn’t working for me. In the “Set up the development project in NetBeans” part after the final step when i go to build the project, i get the following error message:

    cd ‘/Users/jonahweyessa/OPT/nRF5_SDK_13.0.0/examples/ble_peripheral/ble_app_hrs/pca10056/s140/armgcc’
    /bin/sh: /usr/local/gcc-arm-none-eabi-4_9-2015q3/bin/arm-none-eabi-gcc: No such file or directory
    Cannot find: “/usr/local/gcc-arm-none-eabi-4_9-2015q3/bin/arm-none-eabi-gcc”.
    Please set values in: “/Users/jonahweyessa/OPT/nRF5_SDK_13.0.0/components/toolchain/gcc/Makefile.posix”
    according to the actual configuration of your system.
    ../../../../../../components/toolchain/gcc/Makefile.common:25: *** Cannot continue. Stop.

    Do you have any idea, how i can perhaps fix this ?

    Thanks again in advance as always Mohammad.

    • Mohammad Afaneh
      Mohammad Afaneh August 28, 2017 at 9:55 am - Reply

      Hey Jonah,

      You’ll need to update the Makefile.posix file to point to the correct version of the gcc toolchain. There’s a step at the beginning of the tutorial under “Setting up the downloaded tools” that describes where to find the file and how to update it. Did you follow that step?

      • Jonah August 29, 2017 at 5:06 pm - Reply

        Actually I tried the other tar commands too, they just don’t seem to be working. The first time though they all worked fine except line 3 but this is the new error messages for the remaining two when I run the command.

        Jonahs-Air:nRF5_SDK_13.0.0 jonahweyessa$ tar xjvc~/Downloads/
        tar: Can’t specify both -c and -x
        Jonahs-Air:nRF5_SDK_13.0.0 jonahweyessa$ tar xjvc ~/Downloads/nRF5x-Command-Line-Tools_9_4_0_OSX.tar
        tar: Can’t specify both -c and -x
        Jonahs-Air:nRF5_SDK_13.0.0 jonahweyessa$

        • Mohammad Afaneh
          Mohammad Afaneh September 6, 2017 at 4:21 pm - Reply

          Jonah, are you still having trouble with the commands?

          For .zip files, you can just extract them by double clicking in macOS.
          For .tar files, these are already uncompressed files, so you can remove the “-c” option (I believe).

  11. Jonah August 29, 2017 at 5:01 pm - Reply

    I did, everything worked fine except line 3 of that. I received the following error message, I’m not sure what went wrong. Should I delete and re-download gcc ?

    tar xjvf ~/Downloads/gcc-arm-none-6-2017-q2-update-mac.tar.bz2
    tar: Error opening archive: Failed to open ‘/Users/jonahweyessa/Downloads/gcc-arm-none-6-2017-q2-update-mac.tar.bz2’

  12. mdb983 August 31, 2017 at 8:46 am - Reply

    Thanks for the great tutorial.

    There were a few things i needed to change to get it all working correctly, so i’m passing this on in the hope it might help others.

    1. in the Makefile.posix the GNU_INSTALL_ROOT needed to point to the /bin folder. Using the latest GCC Toolchain, this might look something like this: /Users/yournamehere/opt/gcc-arm-none-eabi-6-2017-q2-update/bin/

    2. I used version 14 of the SDK, and seemingly this requires a later version of the command line tools. If you’re using the nRF52840 preview development kit, and the firmware is below 1.1.0, you’ll need to update the firmware. The most important thing is to ensure you have version 9.6 of the command line tools… nRF5x-Command-Line-Tools_9_6_0_OSX.tar. This can be found on the nRF52840 product page, under the download tab:

    I made these couple of changes, replaceing the Command-Line_Tool reference in the above post with the later version and was able to build and flash without any problems. There is a post on the Nordic Site in regards to not being able to flash the board to the latest firmware:

  13. MarcoF October 27, 2017 at 2:09 pm - Reply

    I am trying to follow all the directions but I cannot find Right-click on the “Project -> Code Assistance -> Reparse Project”
    I’m using the same OS and machine (13″) and the latest version of NetBeans C++ 8.2 with updates.

    Basically in the seciton: Configuring the NetBeans project , I can only set the C compiler include directories, any other steps :

    Project -> Code Assistance -> Reparse Project IS MISSING
    Code Assistance -> Configure Code Assistance IS ALSO MISSING

    The other difference is that I have a PCA10040 .. but beside the very first build I cannot move forward.

  14. Akshar Vastarpara November 2, 2017 at 6:01 am - Reply

    Thank you for this great tutorial..
    I am gettine an error..
    make: /Users/akshar/Downloads/opt/gcc/arm-none-eabi-gcc: Command not found
    Cannot find: ‘/Users/akshar/Downloads/opt/gcc/arm-none-eabi-gcc’.
    Please set values in: “/Users/akshar/Downloads/opt/nrfsdk/components/toolchain/gcc/Makefile.posix”
    according to the actual configuration of your system.
    ../../../../../../components/toolchain/gcc/Makefile.common:129: *** Cannot continue. Stop.

    i have tried flash softdevice thing also but in there it didn’t work.. i have put the currect location at makefile.posix but that “-gcc” thing comes from somewhere which not in arm gcc..

    • Mohammad Afaneh
      Mohammad Afaneh November 4, 2017 at 1:54 pm - Reply

      Thanks, Akshar.

      What version of the SDK are you using? I just found out that v 14.0.0 and later has changed how the Makefile.posix file behaves. Now it expects the path to gcc but requires adding “/bin” to the path. So if you’re trying this with SDK v 14.0.0 or later, can you try this and report whether this fixes the issue?

      Try this in Makefile.posix:

      GNU_INSTALL_ROOT := /Users/akshar/Downloads/opt/gcc/arm-none-eabi-gcc/bin

      or whatever the correct path is on your system.

  15. LukaszM November 4, 2017 at 4:29 am - Reply

    Great article, I only have an issue with running debugger. After my JLinkGDBServer starts successfully and I start debugging session, I get this error:
    Debugger Error: \”/user/bin/make\”: not in executable format: File format not recognized

    I am stuck with this ad no sure where to look for and would appreciate any help.
    I use NetBeans 8.2, pca10028 board (nrf51822 chip).
    Few screenshots:

    1. JLinkGBDServer starts:
    2. Attaching debugger:
    3. Error 1 (displayed after attaching debugger):
    4. Error 2 (after trying to run debug session):

    • Mohammad Afaneh
      Mohammad Afaneh November 4, 2017 at 1:58 pm - Reply

      Thanks, Lukasz.

      I noticed your Target in the Attach Debugger window is missing the “remote” part. Try setting the Target value to this instead:

      remote localhost:2331

      Let me know if this fixes it. It may not be the only problem.

      • LukaszM November 4, 2017 at 3:16 pm - Reply

        Thanks for quick reply but it did not help. Gives me the same error.

        • Mohammad Afaneh
          Mohammad Afaneh November 5, 2017 at 7:36 am - Reply

          Did you set the Build Result file?

          The instructions are listed under the section “Setting the Build Result file” in my post.

          • LukaszM November 5, 2017 at 4:11 pm

            It turned out that I forgot about it indeed, I am now able to debug when manually staring JLinkGDBServer and “Attach debugger” but when I try just “Debug” (F5) it gives me
            Degugger Error: \”/usr/bin/make\”: not in executable format: File format not recognised.
            Or it never meant to work that way?

          • Mohammad Afaneh
            Mohammad Afaneh November 6, 2017 at 7:14 am

            Ok, glad that resolved the issue.

            Yes, starting/running the debugging session from the IDE (using F5) is meant when debugging local applications, not remote GDB debugging.

  16. Nanditha November 5, 2017 at 6:34 am - Reply

    HI, Thank you very much for a detailed article. It gave a a good start to move from Windows to Mac.
    I was also hoping if you can help me with setting nRFGoStudio on mac, I tried with Wine using PlayOnMac, but could not do so, as PlayOnMac did not support JLink_Windows_V620h nor the nRF5x-Command-Line-Tools_9_7_1_Installer.

  17. Norbert November 7, 2017 at 10:40 am - Reply

    I have problem with compile ble_peripheral/ble_app_uart. Size of my hex file is only 106,7kB while size of pre-compiled hex file “ble_app_uart_pca10056_s140.hex” in hex folder is 447,6kB. My binary doesn’t work. Should I link some other libs? How to do this?

    • Norbert November 7, 2017 at 11:41 am - Reply

      I know how to fix it. In project properties at Run Command textbox should be “make flash_softdevice” (without quotes). Size of hex file is no matter – it’s just linker optimizes.

      • Mohammad Afaneh
        Mohammad Afaneh November 7, 2017 at 11:54 am - Reply

        Glad you found out how to fix it. Was there anything wrong/misleading in the post that led to this?

  18. Sai November 8, 2017 at 10:47 pm - Reply

    Makefile.posix needs to be updated in the below fashion. I think you need to give the path until -> bin. This worked for me.

    GNU_INSTALL_ROOT := /Users/saic/opt/gcc-arm-none-eabi-6-2017-q2-update/bin/
    GNU_VERSION := 6.3.1
    GNU_PREFIX := arm-none-eabi

    • Mohammad Afaneh
      Mohammad Afaneh November 8, 2017 at 10:50 pm - Reply

      Sai, yes. That’s actually a change that was introduced with nRF SDK version 14.0.0 (and above) – I will update the post to point that out though.

      Thanks for the comment!

  19. Venkat Krishnan December 5, 2017 at 8:18 pm - Reply

    How do you set the run path for NetBeans?

    In the terminal, I added nrfjprog to the PATH variable but when I “run” the program on NetBeans I get the following error: “make: nrfjprog: No such file or directory”.
    Using the nrfjprog from the terminal I was able to successfully flash the softdevice on my nrf52 board.

    However, I still do not understand the reason for the error I got when I used the “run” command on the NetBeans IDE.

    • Mohammad Afaneh
      Mohammad Afaneh December 6, 2017 at 8:57 am - Reply

      Hi Venkat,

      The run path in NetBeans is set under the menu: NetBeans -> Preferences -> C/C++ -> $PATH (next to the field labeled “Base Directory”) -> Modify Run Command Path.

      I have the path to nrfjprog set there.

      Hope this helps.

  20. John-Paul January 31, 2018 at 10:50 am - Reply

    Hi Mohammad,

    First thing, great tutorial man! Truly appreciate the contribution you made. Second I am encountering an error when I go to debug. app_error_weak.c opens up and NRF_LOG_INFO (line 1040) is highlighted instead of my break point @ log_init() (line 1027). On my terminal I am getting the following:

    Read 4 bytes @ address 0x00009F30 (Data = 0x0104F8D4)
    Read 2 bytes @ address 0x00009F30 (Data = 0xF8D4)
    Read 4 bytes @ address 0x00009EB6 (Data = 0xF008B198)
    Read 2 bytes @ address 0x00009EB6 (Data = 0xB198)
    Read 4 bytes @ address 0x00009EB6 (Data = 0xF008B198)
    Read 2 bytes @ address 0x00009EB6 (Data = 0xB198)
    Read 2 bytes @ address 0x00028692 (Data = 0x2000)
    Read 2 bytes @ address 0x00028A80 (Data = 0x4C27)
    Setting breakpoint @ address 0x00028A80, Size = 2, BPHandle = 0x0001
    Starting target CPU…
    …Breakpoint reached @ address 0x00028A80
    Reading all registers
    Read 4 bytes @ address 0x00028A80 (Data = 0x49284C27)
    Removing breakpoint @ address 0x00028A80, Size = 2
    Reading 64 bytes @ address 0x00028AC0
    Reading 64 bytes @ address 0x00028A80

    I can send you screen shots if you’d like.

    Another thing I am seeing is a case p_ble_evt not being recognized by the compiler… Line 780 case BLE_GAP_… “unable to resolve” any idea why the code assistant / compiler isn’t understanding this case, I’m guessing these are enumerated in a header filer somewhere….

    Thanks Mohammad

    • Mohammad Afaneh
      Mohammad Afaneh February 1, 2018 at 8:38 am - Reply

      Thanks, John-Paul! I’m glad you’ve found it useful.

      What you’re seeing in regards to the debug mismatch usually happens if the code flashed to the device is not up-to-date with the code you have loaded in the IDE. However, if that’s not the case, it may be that you do not have the right compiler settings in the Makefile (sometimes code optimization could cause such issues to occur). Can you check the compiler flags in Makefile? Try adding the following in the CFLAGS section:

      CFLAGS += -g3 -ggdb

      In the case of the symbol not being recognized by NetBeans, try following these steps:
      – Right-click on the project
      – Go to Code Assistance -> Configure Code Assistance
      – Under “Select Analyzer”, choose “Search file system for C/C++ header files”
      – Click Next
      – Select Browse and point it to the root folder of the SDK
      – Click Next
      – Click Finish
      – Wait for the IDE to reparse the project

      Let me know if this helps fix the issue.

      On another note, I recommend you check out Segger Embedded Studio (SES) instead of NetBeans. I’ve been using NetBeans for a while but looked into SES recently after Nordic and Segger announced their partnership, and have decided to make the switch. I’ll be writing a tutorial in the near future on how to use SES for creating and developing a new project.

Leave A Comment
